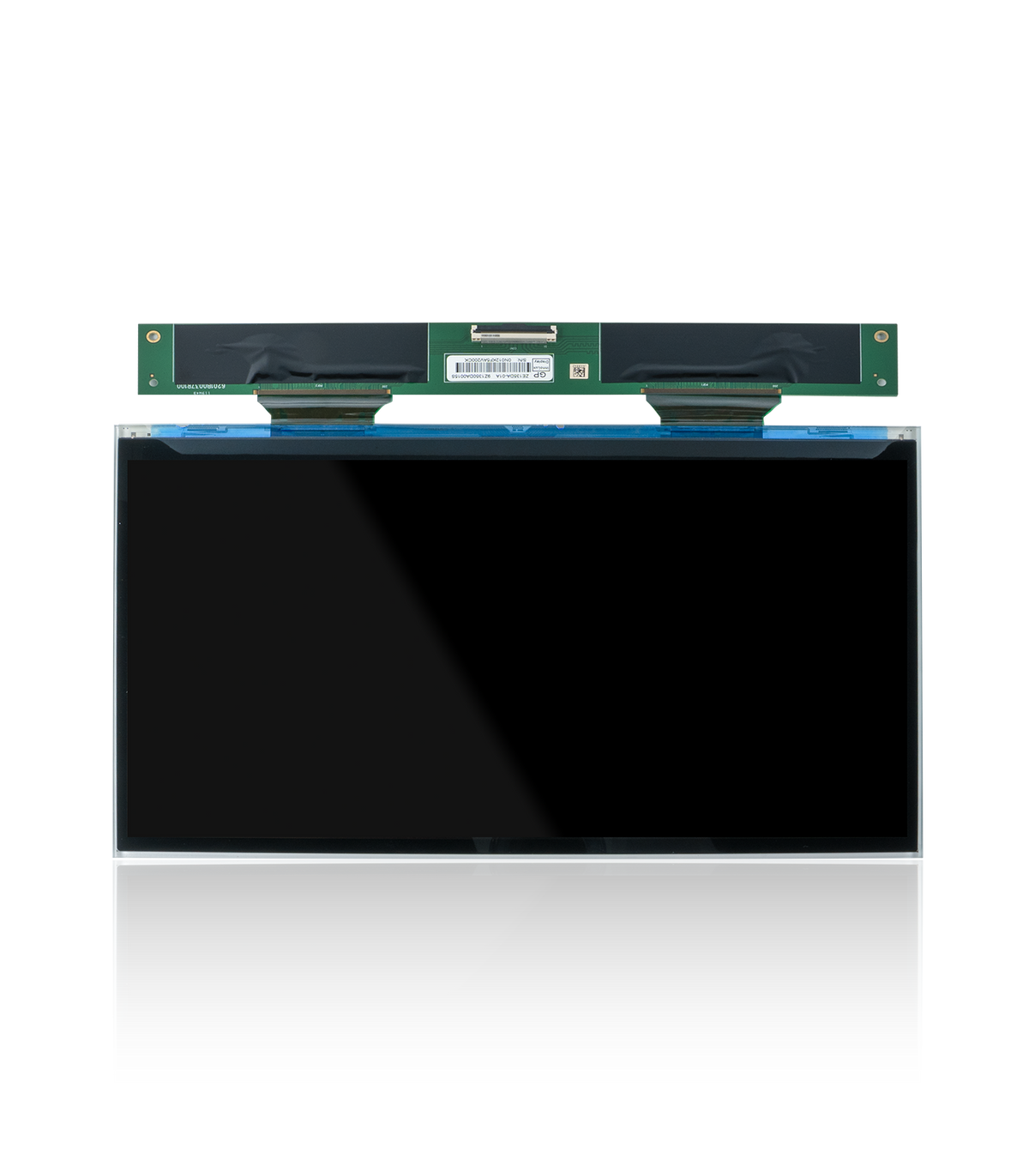

Phrozen LCD Screen for Mighty Revo 16K MAX
$245.00
$297.00
Unit price
/
Unavailable
Shipping calculated at checkout.
ETA: End Of December
- 14-inch 16K Mono LCD with 15,104 × 6,230 resolution and 20 × 26 μm pixels for sharp detail across a large print area.
- Expected 2,000-hour lifespan, supported by the printer’s LCD life tracking and replacement reminder.
- Complete replacement kit includes the LCD screen, tempered glass screen protector with a special coating, black LCD frame tape, LCD cable, and 2 pieces of acetate tape, ready to install right out of the box.
- Quick-release design makes LCD maintenance more efficient and helps reduce the impact of downtime on print schedules.
Couldn't load pickup availability
Shipping & Tariff
- Please expect a standard lead time of approximately 1 week.
- Currently, the Phrozen US Store only ships to the mainland United States. For non-contiguous states and other U.S. territories, please purchase through our Global Store.
- No refunds will be provided if a customer refuses to collect or returns their product(s) due to related costs.
- Customers are responsible for customs clearance in all countries.
- For more information, please refer to our Shipping page.
Shipping Notice: In-stock items are prioritized and arranged to ship first. Out-of-stock items will ship once available.
Return & Warranty
- According to the Consumer Protection Act, you have the option to request a refund within a period of 13 days. However, please note that the refund does not cover the shipping fees and tax/VAT charges. To initiate the refund process, you need to submit a request to the Phrozen Support Center within this 13-day timeframe. It is important to ensure that the product is returned in its original condition, and the entire batch order must be sent back. For more details, please refer to our Refund Policy page.
-
All products purchased from the official website of Phrozen are warranted under different terms. Phrozen offers a one-year warranty for all our products except consumables and components; this includes the LCD screen and the FEP film. LCD screens for the Sonic Mighty 8K, Sonic Mini 8K, Sonic Mega 8K, Sonic Mini 4K, and Sonic 4K are covered under a 3-month warranty. For more details, please refer to our Warranty page.
*Kind reminder: We would suggest pairing our printers with Phrozen's resins to prevent surface paint damage. If a problem occurs, please feel free to contact our support team.
Product Highlights
Product Highlights
Product Overview
The Phrozen LCD Screen is the official replacement LCD for the Sonic Mighty Revo 16K MAX. It uses a 14-inch 16K Mono LCD with 15,104 × 6,230 resolution, 20 × 26 μm pixels, and an expected lifespan of 2,000 hours. This is a complete replacement kit with the LCD screen, tempered glass screen protector with a special coating, black LCD frame tape, LCD cable, and 2 pieces of acetate tape. Together with the printer’s LCD life tracking and quick-release design, it helps make planned maintenance more efficient and reduces downtime risk for studios, print farms, and professional users.
Product Introduction
The Phrozen LCD Screen is one of the core components of an LCD resin 3D printer. It controls how UV light is projected into the resin vat, curing the model layer by layer. To help maintain print quality and stability, Phrozen provides official replacement LCD screens for multiple Sonic Series 3D printers.
Phrozen official LCD screens use Mono LCD technology, which offers higher light transmission to improve printing efficiency and extend panel lifespan. With a heat-resistant design, the screen can maintain stable performance during long print sessions, helping each print stay accurate and consistent.
The LCD screen for Sonic Mighty Revo 16K MAX is a 14-inch 16K panel with 15,104 × 6,230 resolution, 20 × 26 μm pixel size, and an expected lifespan of 2,000 hours. It ships as a complete kit with the LCD screen, tempered glass screen protector with a special coating, black LCD frame tape, LCD cable, and 2 pieces of acetate tape, so the parts needed for replacement are included in one package.
If the LCD screen shows uneven brightness, black spots, print failures, or reduced performance after long-term use, replacing it with an official LCD screen can help restore the printer tooptimalprintingcondition.
Specs
Specs
- 14-inch 16K ultra-high resolution: Large 14-inch screen with 15,104 × 6,230 resolution and 20 × 26 μm pixels keeps details sharp across large batch layouts.
- Complete replacement kit: Includes the LCD screen, tempered glass screen protector with a special coating, black LCD frame tape, LCD cable, and 2 pieces of acetate tape, so the required replacement parts are included.
- Works with the printer’s LCD life tracking: Sonic Mighty Revo 16K MAX tracks accumulated LCD usage and shows a warning on the print page when the recommended replacement threshold is reached.
- Quick-release design: The Sonic Mighty Revo 16K MAX LCD quick-release design makes LCD removal and replacement more efficient, helping reduce downtime.
- Mono LCD high-transmission technology: Mono LCD technology allows more UV light to pass through than traditional RGB LCD, helping shorten exposure time.
- Stable heat-resistant design: The LCD screen is built to maintain stable performance during long print sessions and reduce heat-related aging.
- Official compatible design: Each LCD screen is made for its matching Phrozen Sonic printer model, ensuring the dimensions, connection, and optical performance match properly.
- Restores print quality: Replacing an aged or worn LCD can restore clear projection and accurate curing, helping maintain model detail and print success rate.
When Do I Need to Replace My LCD Screen?
The LCD screen is a consumable part in an LCD resin 3D printer and may gradually age as print time increases. Check or replace the LCD screen if:
-
Printed models have missing layers or partially uncured areas.
-
Repeating patterns or artifacts appear on model surfaces.
-
The LCD screen shows black spots, bright spots, or display abnormalities.
-
Exposure efficiency drops and print success rate decreases.
-
Print quality becomes unstable after long-term use.
-
The printer shows a “Replace LCD Screen” reminder.
Replacing the LCD screen can help restore the printer to optimal performance.
LCD Replacement Asset Note
Why Choose the Official Phrozen LCD?
Choosing the official LCD screen helps ensure optimal print results and printer stability:
-
14-inch 16K ultra-high resolution with an expected lifespan of 2,000 hours.
-
Complete replacement kit with all required parts included.
-
Tempered glass screen protector with a special coating for easier cleaning and LCD protection.
-
Works with the printer’s life tracking for planned maintenance.
-
Quick-release design helps reduce downtime.
-
Official specifications ensure full compatibility.
-
Mono LCD high-transmission technology.
-
Stable heat-resistant design helps extend service life.
-
Made for the Phrozen Sonic Mighty Revo 16K MAX.
|
Parts & Consumbles |
Function |
Impact |
|
LCD Screen |
Optical masking |
3D print resolution |
|
LCD Frame Tape |
Secures the LCD, seals the edges |
LCD stability |
|
Tempered Glass LCD screen protector |
Protects LCD surface |
Extends LCD lifespan |
|
FEP Release film |
Standard release film |
Daily printing |
|
PFA / nFEP Release Film |
Low-peel release film |
Higher success rate |
|
ACF Release Film |
High-speed release film |
High-speed printing |
Frequently Asked Questions
What does the LCD screen do in a 3D printer?
What does the LCD screen do in a 3D printer?
The LCD screen controls the UV light projection pattern, allowing photopolymer resin to cure according to each sliced layer. It isan important componentin an MSLA resin 3D printer.
What is the difference between Mono LCD and a standard LCD?
What is the difference between Mono LCD and a standard LCD?
Mono LCD has higher light transmission, allowing more UV light to pass through the panel. This can shorten exposure time and extend LCD lifespan.
What are the Revo 16K MAX LCD screen specifications?
What are the Revo 16K MAX LCD screen specifications?
It is a 14-inch 16K Mono LCD with 15,104 × 6,230 resolution, 20 × 26 μm pixel size, and an expected lifespan of 2,000 hours.
What is included in this SKU?
What is included in this SKU?
This complete LCD replacement kit includes a 14-inch 16K Mono LCD × 1, tempered glass screen protector with a special coating × 1, black LCD frame tape × 1, LCD cable × 1, and acetate tape × 2.
How do I know when to replace the LCD?
How do I know when to replace the LCD?
Sonic Mighty Revo 16K MAX has built-in LCD life tracking. It shows a warning when the recommended replacement threshold is reached. You can also check LCD status in system settings as Normal or Replace recommended.
How long does the LCD screen last?
How long does the LCD screen last?
The LCD screen has an expected lifespan of 2,000 hours. Actual lifespan depends on print time, exposure settings, and usage environment. Replace it if you see uneven brightness, black spots, lower print quality, or a replacement reminder.
Does the LCD screen come with a warranty?
Does the LCD screen come with a warranty?
The official Phrozen LCD screen comes with a 3-month warranty, excluding damage caused by user error or improper installation.
How do I replace the Phrozen LCD screen?
How do I replace the Phrozen LCD screen?
Phrozen Sonic Series LCD screens are replaceable parts. Follow the official replacement tutorial to complete the replacement. See the Help Center for the Revo 16K MAX LCD replacement guide.
Sonic Mighty Revo 16K MAX Original Parts
This original parts collection includes heated resin vats, Quick-Release Resin Vats, build plates, LCD screens, release films, and other accessories for daily maintenance, consumable replacement, and workflow upgrades.
- Made for Sonic Mighty Revo 16K MAX with official Phrozen specifications for stable operation.
- High-quality manufacturing and precise dimensions support accuracy and durability during long print runs.
- Suitable for both daily maintenance and performance upgrades, making it a reliable choice for Revo 16K MAX users.
For installation and usage guidance, please refer to the Phrozen Help Center.
