Phrozen PFA (nFEP) Film for Mighty Revo 16K MAX Heated Resin Vat(3 Pcs)
$57.80
$68.00
Unit price
/
Unavailable
Shipping calculated at checkout.
ETA: End Of December
- Only compatible with the Sonic Mighty Revo 16K MAX Heated Resin Vat. For the Quick-Release Resin Vat, use the Quick-Release Resin Vat version.
- PFA (nFEP) material helps reduce release force and is more durable than standard FEP.
- 97.5% UV light transmission supports stable exposure for Revo MAX resin printing.
- Revo 16K MAX tracks film usage and shows a “Replace Release Film” reminder.

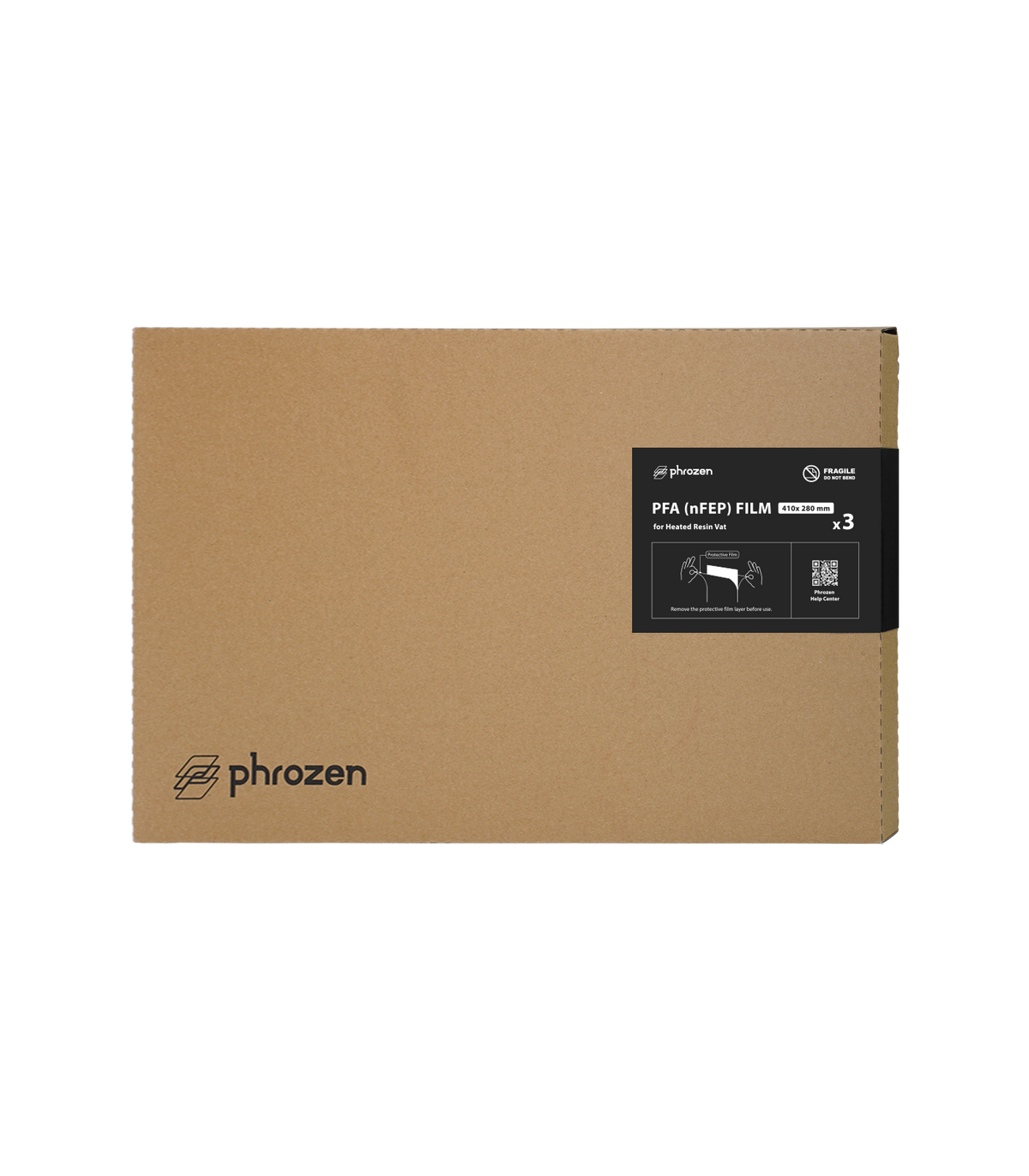

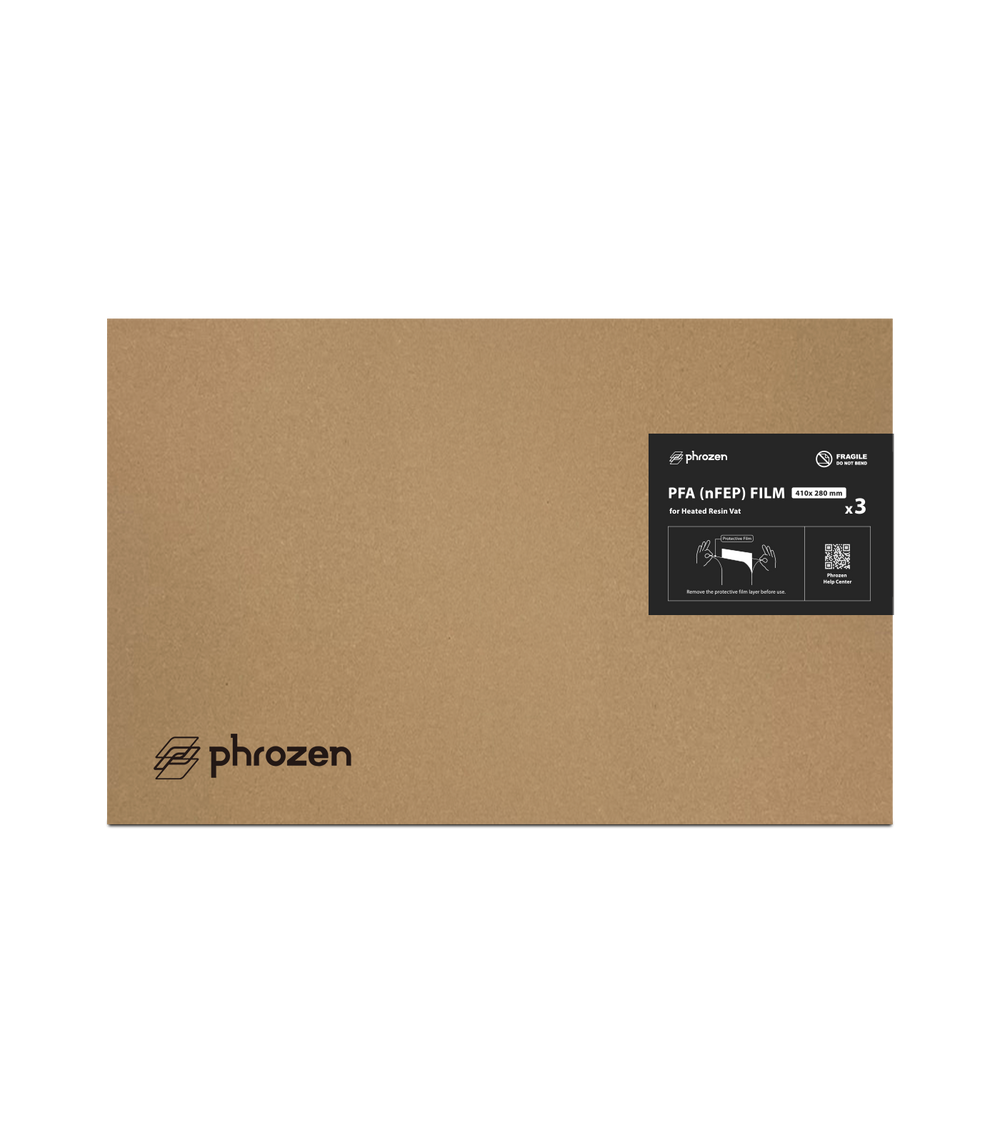

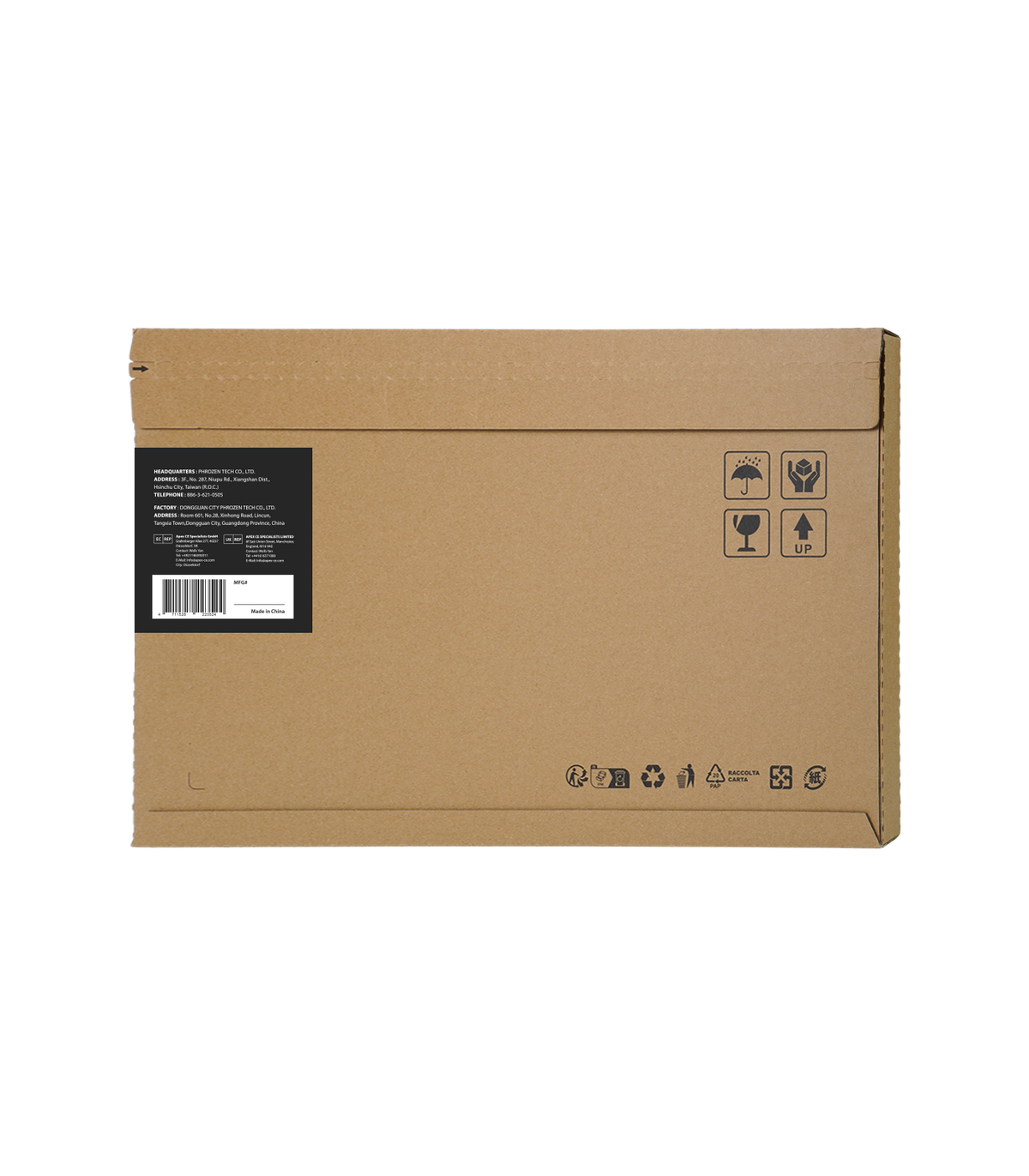

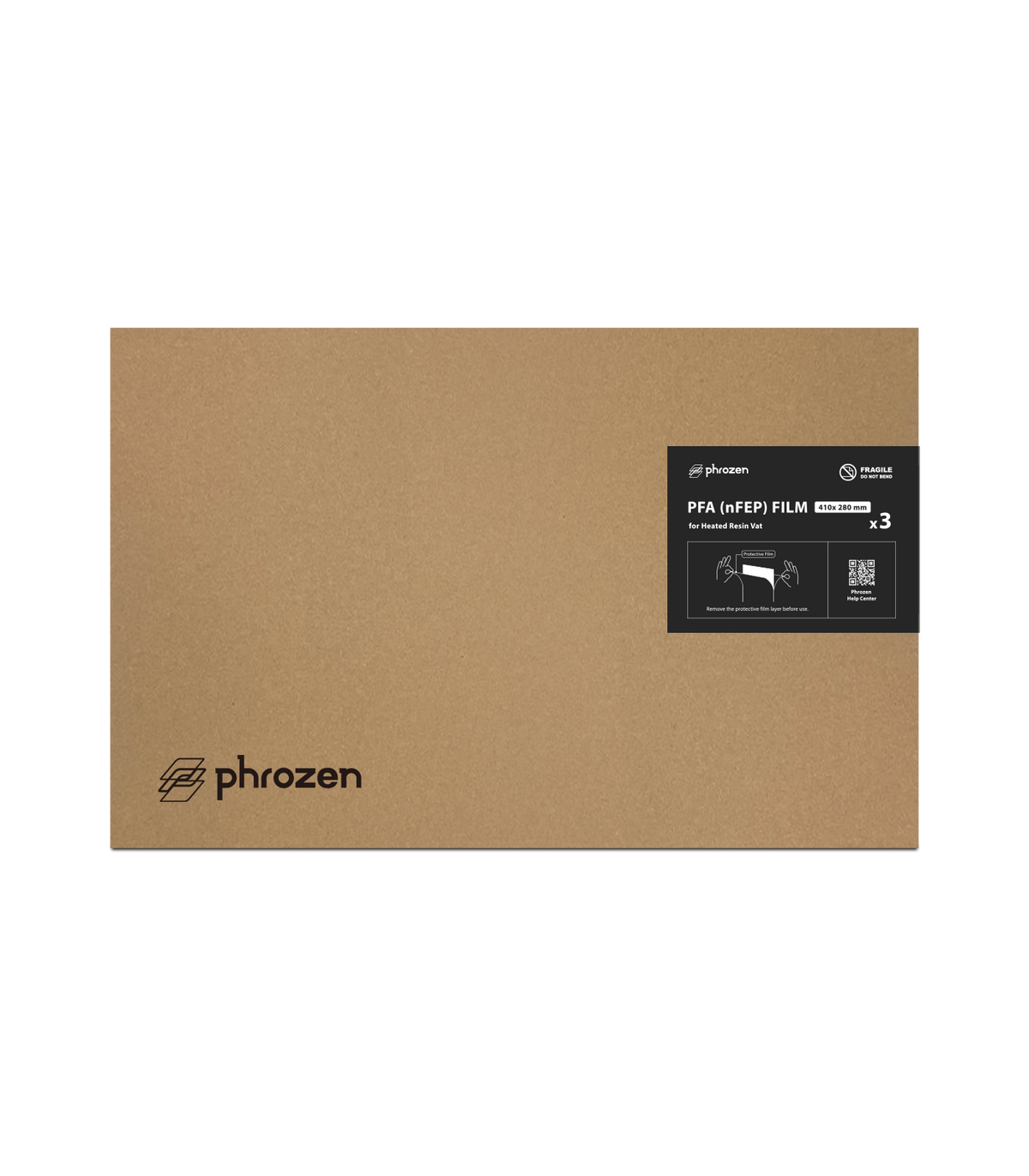

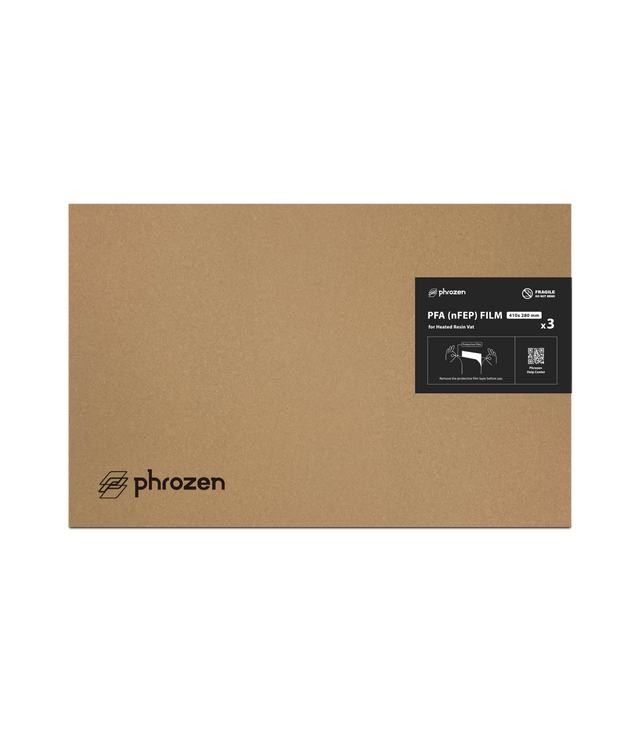

- Cardboard protective packaging helps reduce creases, dust, and contamination during shipping.
Couldn't load pickup availability
Shipping & Tariff
- Please expect a standard lead time of approximately 1 week.
- Currently, the Phrozen US Store only ships to the mainland United States. For non-contiguous states and other U.S. territories, please purchase through our Global Store.
- No refunds will be provided if a customer refuses to collect or returns their product(s) due to related costs.
- Customers are responsible for customs clearance in all countries.
- For more information, please refer to our Shipping page.
Shipping Notice: In-stock items are prioritized and arranged to ship first. Out-of-stock items will ship once available.
Return & Warranty
- According to the Consumer Protection Act, you have the option to request a refund within a period of 13 days. However, please note that the refund does not cover the shipping fees and tax/VAT charges. To initiate the refund process, you need to submit a request to the Phrozen Support Center within this 13-day timeframe. It is important to ensure that the product is returned in its original condition, and the entire batch order must be sent back. For more details, please refer to our Refund Policy page.
-
All products purchased from the official website of Phrozen are warranted under different terms. Phrozen offers a one-year warranty for all our products except consumables and components; this includes the LCD screen and the FEP film. LCD screens for the Sonic Mighty 8K, Sonic Mini 8K, Sonic Mega 8K, Sonic Mini 4K, and Sonic 4K are covered under a 3-month warranty. For more details, please refer to our Warranty page.
*Kind reminder: We would suggest pairing our printers with Phrozen's resins to prevent surface paint damage. If a problem occurs, please feel free to contact our support team.
Phrozen PFA (nFEP) Film for Mighty Revo 16K MAX Heated Resin Vat(3 ...
$57.80
$68.00
Unit price
/
Unavailable
Product Highlights
Product Highlights
Product Overview
Phrozen PFA (nFEP) Film is the official release film for the Sonic Mighty Revo 16K MAX Heated Resin Vat. Made from 0.15 mm PFA (nFEP) material with 97.5% UV light transmission and 40,000+ release cycles, it is optimized for heated printing environments. The Revo 16K MAX also tracks film usage and shows a replacement reminder when the recommended threshold is reached, making planned maintenance easier.
Product Introduction
Phrozen PFA (nFEP) Film is the official replacement consumable for the Sonic Mighty Revo 16K MAX Heated Resin Vat. The release film sits at the bottom of the resin vat, allowing UV light to pass through while helping the cured layer separate from the vat bottom. It is one of the key consumables that affects print quality and print success rate in resin 3D printing.
This PFA (nFEP) release film is built for durability and stable light transmission. It is heat-resistant and long-lasting, helping support high-quality printing over repeated use. Together with the Revo 16K MAX built-in Film life tracking system, the printer automatically reminds you when usage reaches the recommended replacement threshold.
Note: This version is for the Revo 16K MAX Heated Resin Vat. If you use the Quick-Release Resin Vat, the size and installation method are different. Please choose the Quick-Release Resin Vat version instead.
Key Features
- Heated Resin Vat only: This film is made for the Sonic Mighty Revo 16K MAX Heated Resin Vat. If you use the Quick-Release Resin Vat, choose the matching Quick-Release Resin Vat version.
- Durable PFA (nFEP) material: PFA (nFEP) has lower release force, longer lifespan, and stronger chemical resistance than standard FEP, helping reduce peel force and lower print failure risk.
- Ultra-high 97.5% UV light transmission: More even light transmission helps shorten exposure time and maintain 16K high-resolution print quality.
- Built-in film lifespan detection: The Revo 16K MAX tracks cumulative usage and automatically displays a "Replace Release Film" alert on the print screen once the recommended replacement threshold is reached, so maintenance is based on data, not guesswork.
- Protective packaging: The film is wrapped with cardboard to help prevent creases and contamination during shipping, so it is ready touseafter opening.
Specs
Specs
- Compatible Model: Sonic Mighty Revo 16K MAX
- Compatible Vat: Heated Resin Vat only
- Material: PFA (Perfluoroalkoxy), commonly known in the industry as nFEP
- Color: Transparent
- Size: 410 × 280 mm
- Thickness: 0.15 mm
- UV Light Transmission: 97.5%
- Release Cycles: 40,000+
- Quantity: 3 pcs
- Recommended Replacement Cycle: Every 3 to 6 months, or when the printer reaches the Film Usage reminder threshold
When do I need to replace the release film?
The release film is a consumable that needs periodic replacement. Replace in any of these cases:
-
The printer shows a “Replace Release Film” reminder.
-
The film surface has scratches, holes, or visible deformation.
-
The film becomes cloudy or its light transmission noticeably decreases.
-
Print failures increase, models detach, or bottom layers separate.
-
The film has reached the recommended replacement cycle of 3 to 6 months.
Use and care tips
-
Before first installation, follow the official tutorial video to make sure the film is secured correctly.
-
After each print, gently wipe resin residue from the film surface with a paper towel to help extend its lifespan.
-
Avoid using sharp tools, such as metal scrapers, on the film surface.
-
If you notice damage, punctures, or heavy clouding, replace the film immediately to help prevent resin leaks from damaging the LCD.
-
Store unopened release films in a cool, dry place.
Frequently Asked Questions
Can I use this release film with the Quick-Release Resin Vat?
Can I use this release film with the Quick-Release Resin Vat?
No. This version is made for the Mighty Revo 16K MAX Heated Resin Vat. If you use the Quick-Release Resin Vat, choose Phrozen PFA (nFEP) Film for Sonic Mighty Revo 16K MAX Quick-Release Resin Vat.
How often should I replace nFEP release film?
How often should I replace nFEP release film?
Under normal use, replacement is recommended every 3 to 6 months, or when accumulated release cycles reach about 40,000. Actual lifespan depends on print frequency, resin type, and handling.
What is the difference between PFA, nFEP, and FEP?
What is the difference between PFA, nFEP, and FEP?
PFA and nFEP are different names for the same type of material. Compared with traditional FEP, they offer longer service life, lower release force, and better tolerance for high-viscosity engineering resins.
Sonic Mighty Revo 16K MAX Original Parts
This original parts collection includes heated resin vats, Quick-Release Resin Vats, build plates, LCD screens, release films, and other accessories for daily maintenance, consumable replacement, and workflow upgrades.
- Made for Sonic Mighty Revo 16K MAX with official Phrozen specifications for stable operation.
- High-quality manufacturing and precise dimensions support accuracy and durability during long print runs.
- Suitable for both daily maintenance and performance upgrades, making it a reliable choice for Revo 16K MAX users.
For installation and usage guidance, please refer to the Phrozen Help Center.
