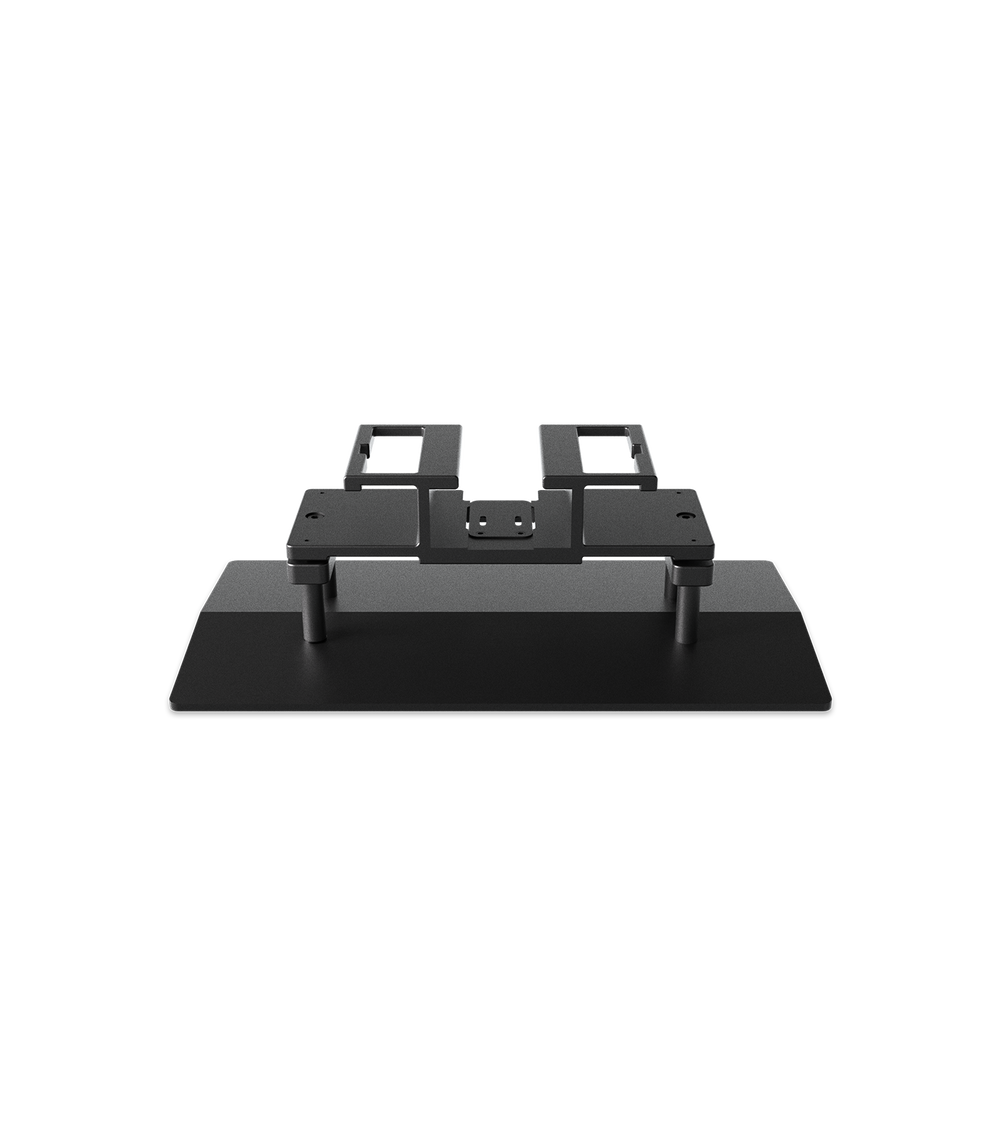

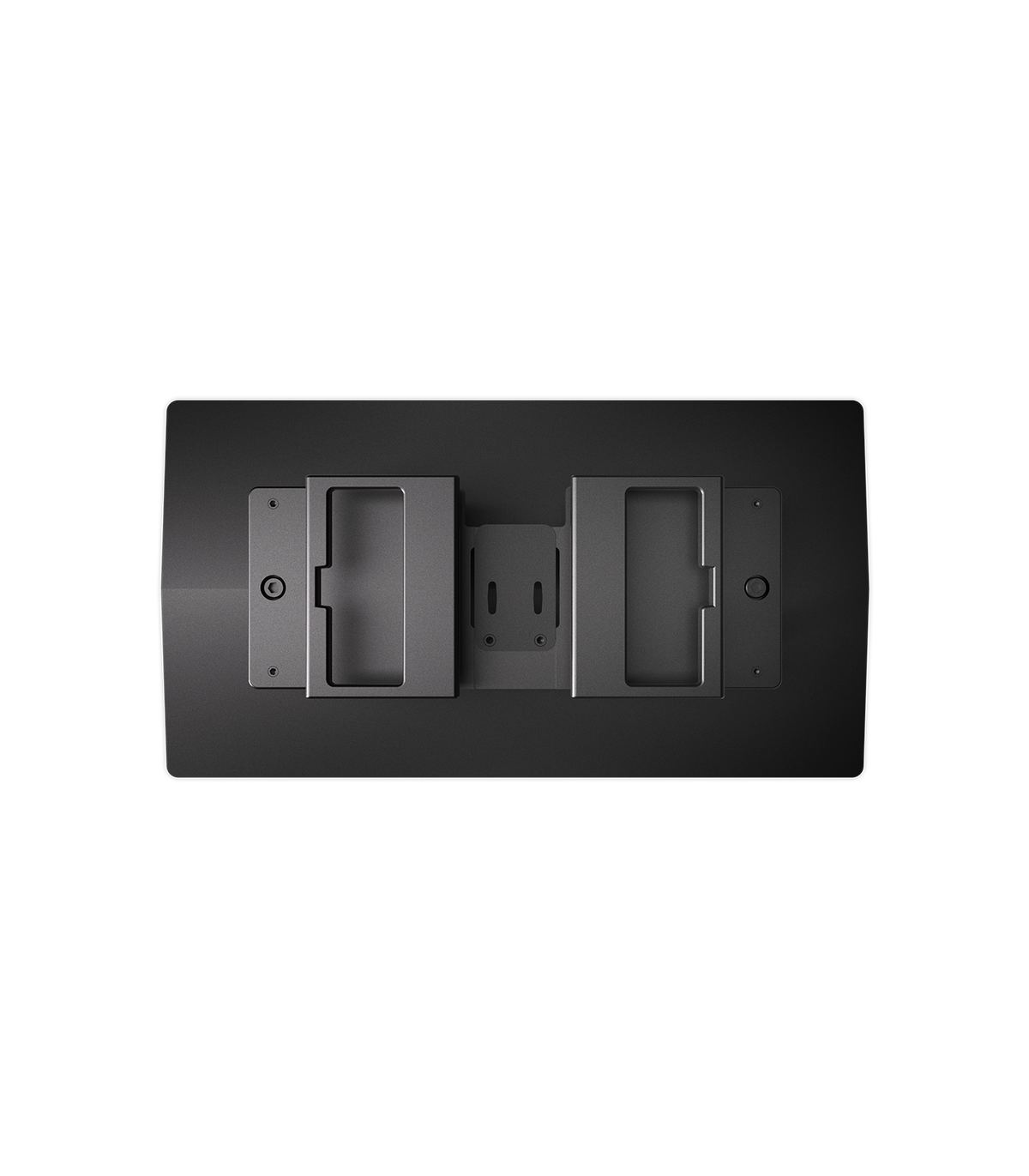

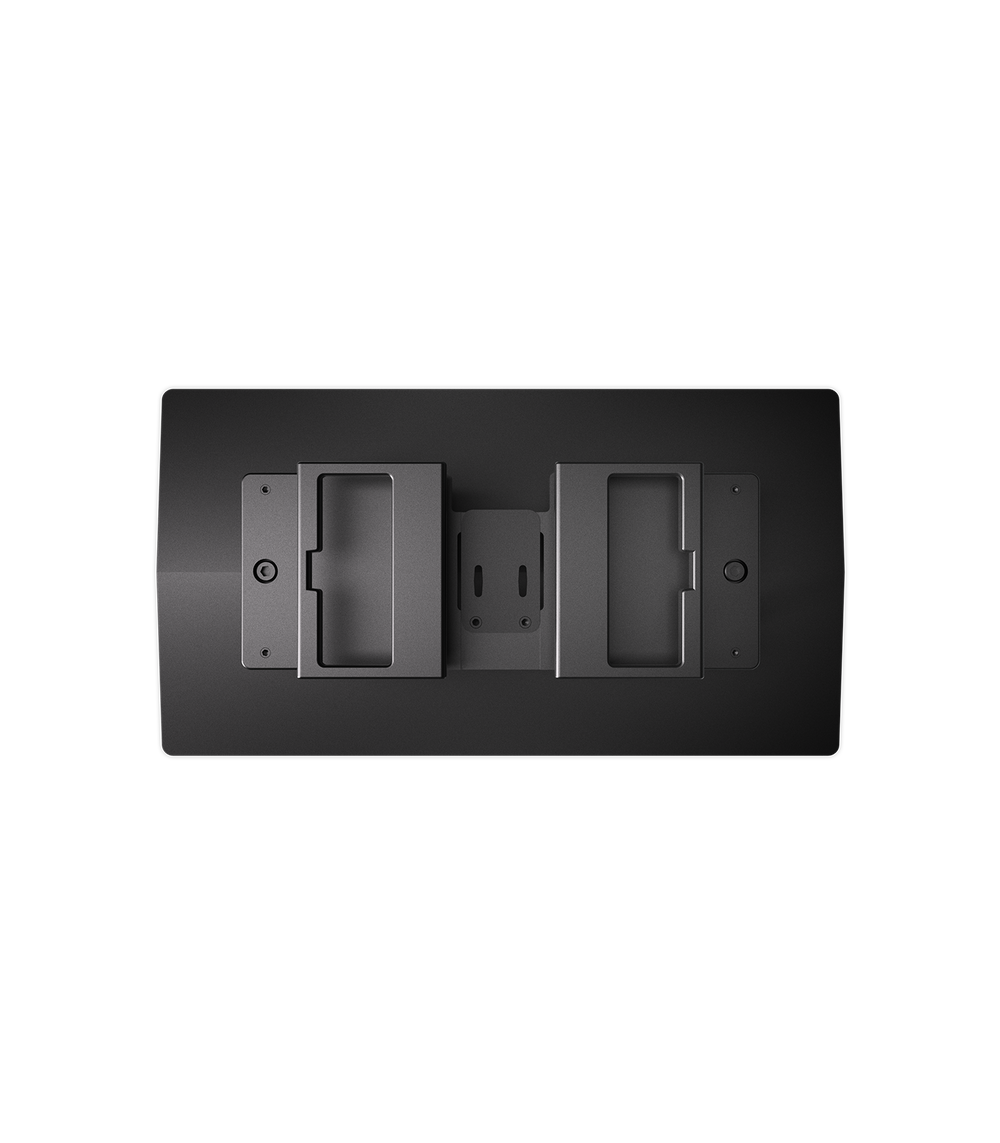

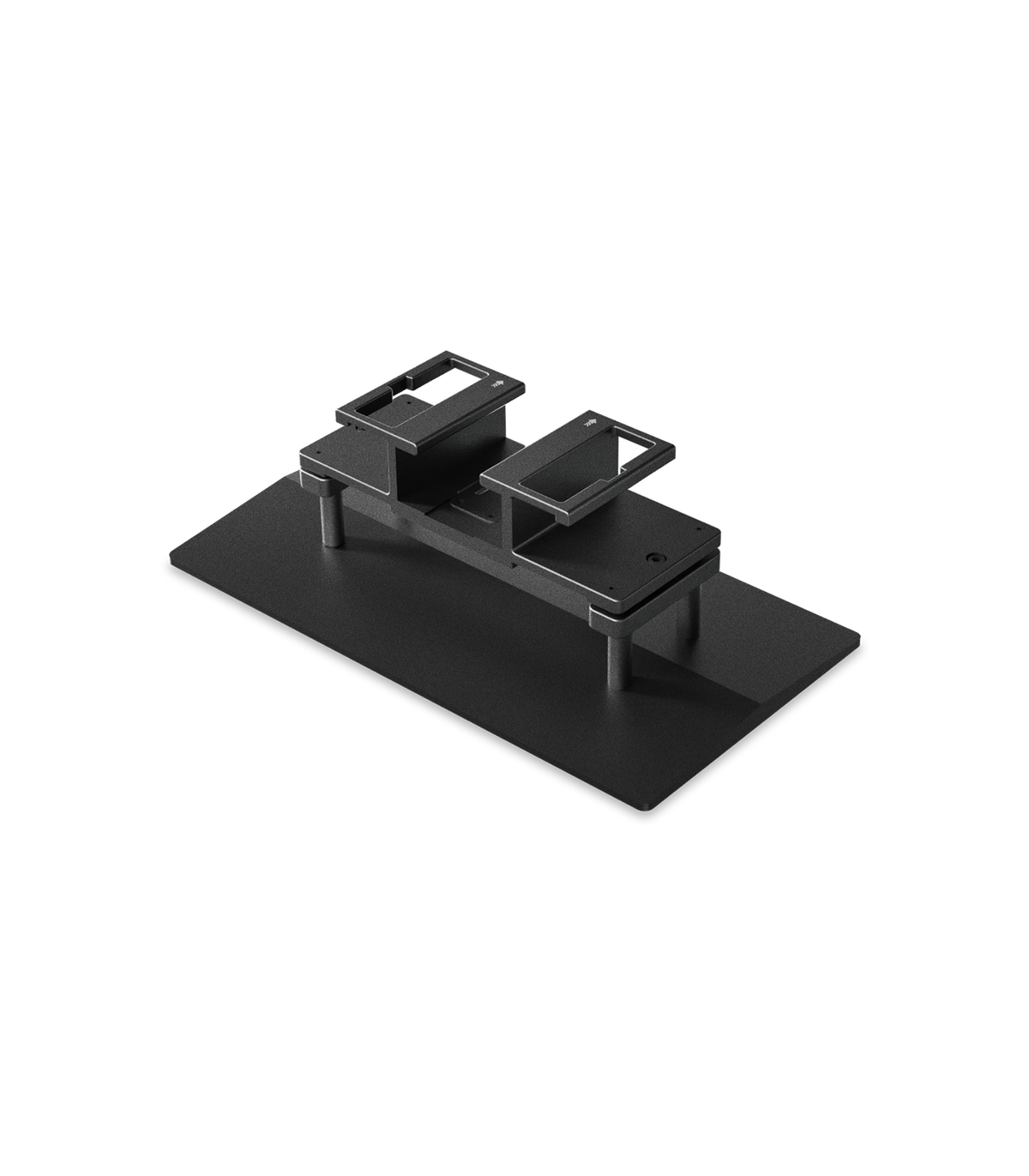

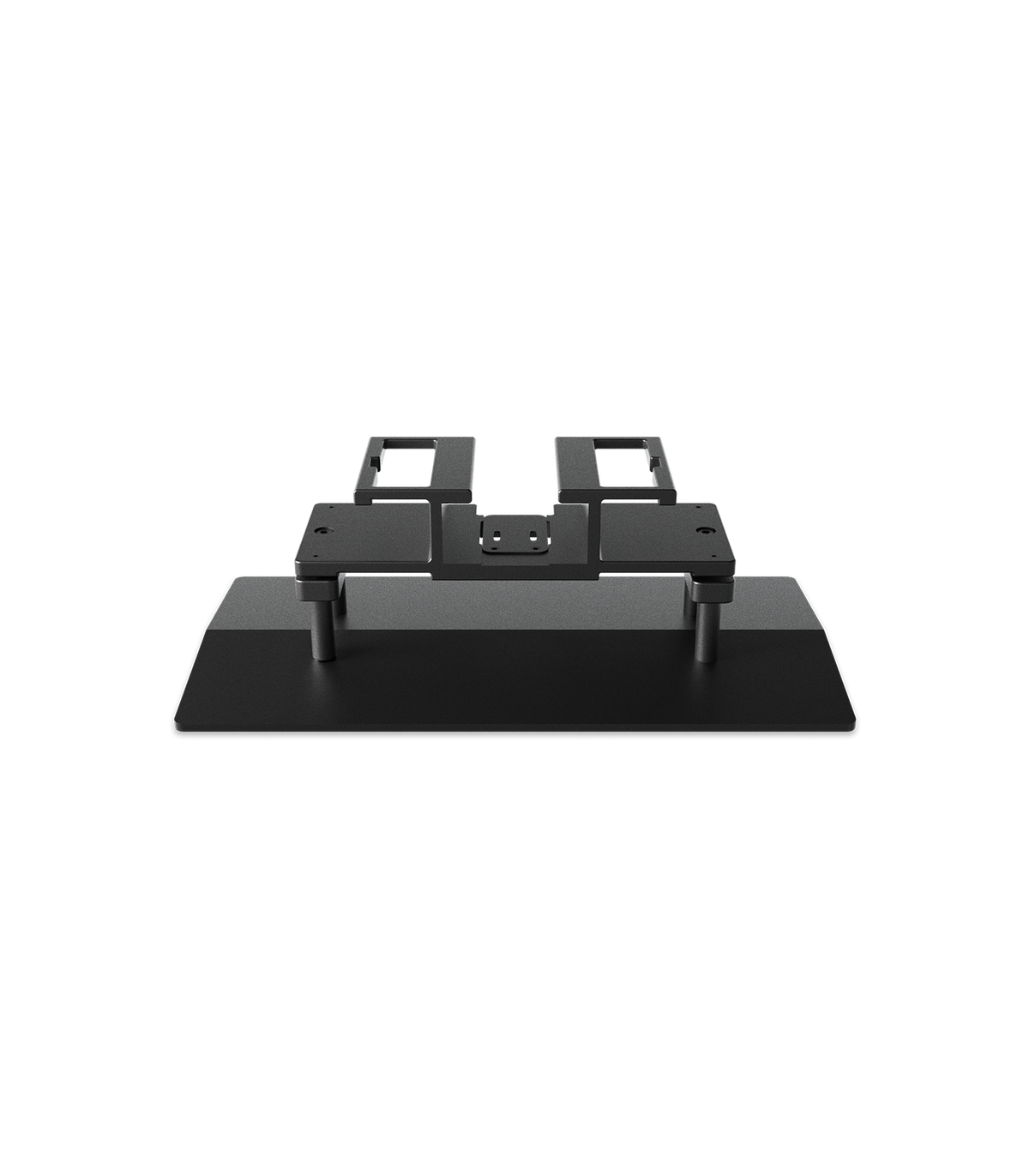

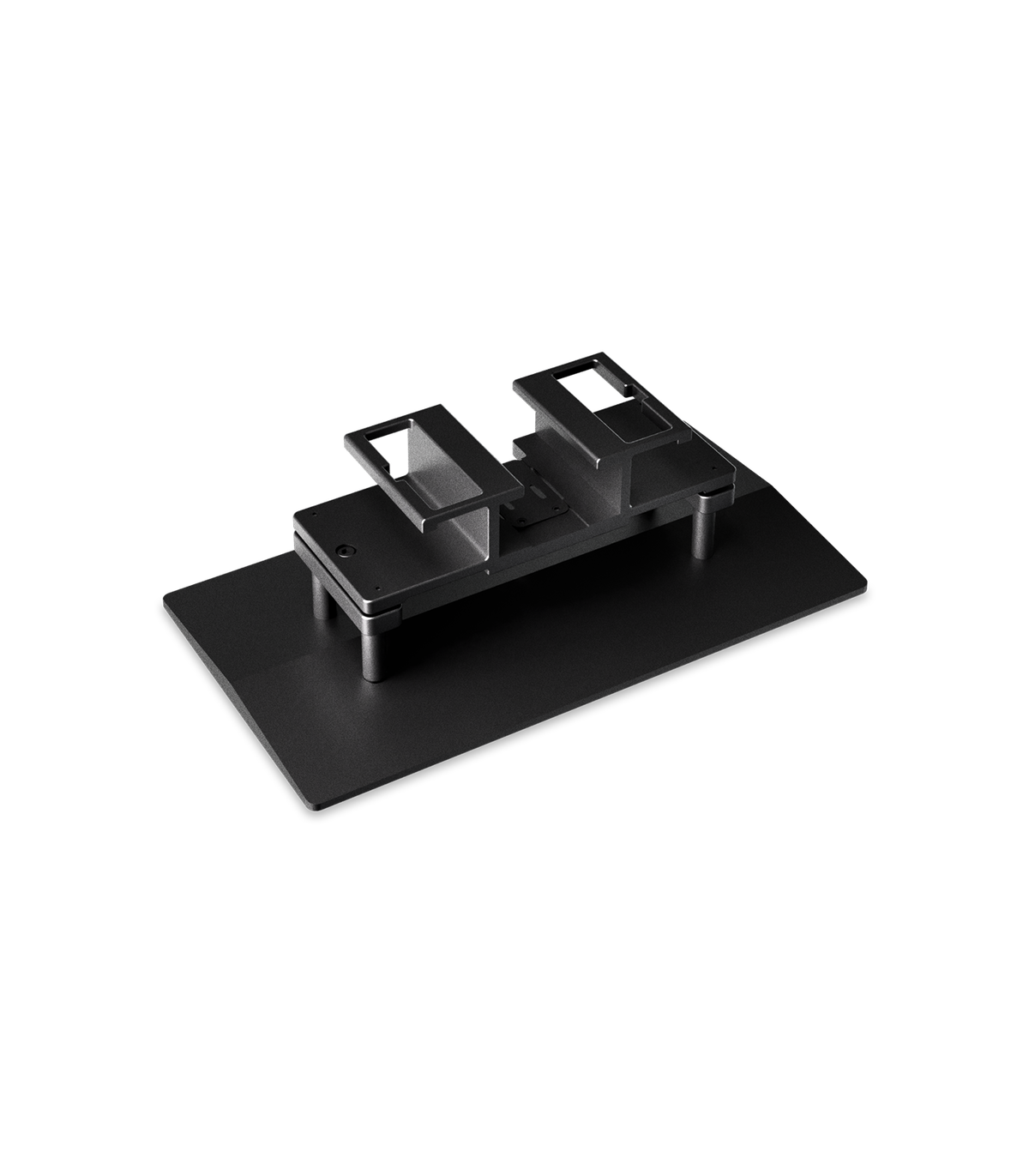

Phrozen Build Plate for Mighty Revo 16K MAX
$68.85
$81.00
Unit price
/
Unavailable
Shipping calculated at checkout.
ETA: End Of December
- Quick-release build plate removes easily after printing without loosening screws.
- Sandblasted anodized surface with laser-etched texture improves first-layer adhesion while staying durable and wear-resistant.
- All-metal design can go directly into the Phrozen Wash Mega S, with larger handles and hanger grooves for easier handling, draining, and cleaning.
- Angled drain design works with the printer’s built-in hanger, letting excess resin flow back into the vat for easier cleanup.
Couldn't load pickup availability
Shipping & Tariff
- Please expect a standard lead time of approximately 1 week.
- Currently, the Phrozen US Store only ships to the mainland United States. For non-contiguous states and other U.S. territories, please purchase through our Global Store.
- No refunds will be provided if a customer refuses to collect or returns their product(s) due to related costs.
- Customers are responsible for customs clearance in all countries.
- For more information, please refer to our Shipping page.
Shipping Notice: In-stock items are prioritized and arranged to ship first. Out-of-stock items will ship once available.
Return & Warranty
- According to the Consumer Protection Act, you have the option to request a refund within a period of 13 days. However, please note that the refund does not cover the shipping fees and tax/VAT charges. To initiate the refund process, you need to submit a request to the Phrozen Support Center within this 13-day timeframe. It is important to ensure that the product is returned in its original condition, and the entire batch order must be sent back. For more details, please refer to our Refund Policy page.
-
All products purchased from the official website of Phrozen are warranted under different terms. Phrozen offers a one-year warranty for all our products except consumables and components; this includes the LCD screen and the FEP film. LCD screens for the Sonic Mighty 8K, Sonic Mini 8K, Sonic Mega 8K, Sonic Mini 4K, and Sonic 4K are covered under a 3-month warranty. For more details, please refer to our Warranty page.
*Kind reminder: We would suggest pairing our printers with Phrozen's resins to prevent surface paint damage. If a problem occurs, please feel free to contact our support team.
Product Highlights
Product Highlights
Product Overview
The Phrozen Build Plate is the official replacement build plate for the Sonic Mighty Revo 16K MAX. It features a latch-lock quick-release design and dual handles, so you can remove it after printing without loosening screws, while keeping a steadier grip on large prints. The all-metal, screw-free exterior can go directly into the Phrozen Wash Mega S, and the angled drain design works with the printer’s built-in hanger so excess resin can drain back into the vat. Its sandblasted anodized surface with laser-etched texture supports first-layer adhesion and long-term durability, making it a good choicefor studios, print farms, and professional users who print large models and care about post-processing efficiency.
What Is a 3D Printer Build Plate?
A build plate is the key part of an MSLA resin 3D printer that holds the printed model. As printing begins, each layer cures and attaches to the build plate surface. The build plate then moves upward along the Z-axis layer by layer as the model takes shape. A stable, flat build plate helps models adhere firmly and reduces the risk of detachment or deformation during printing. The official Phrozen build plate is made from high-strength metal for a rigid, durable structure that maintains stable printing performance over long-term use. Phrozen build plates are made in different versions for different printer models. This version is made for the Sonic Mighty Revo 16K MAX and uses an all-metal design that can be placed directly into the Phrozen Wash Mega S for faster cleaning. Together with the printer’s built-in hanger and the build plate’s angled drain structure, the plate can be hung upside down above the resin vat after printing, letting excess resin flow back into the vat for easier cleanup.
Key Features
- All-metal build plate design: Can be placed directly into the Phrozen Wash Mega S, reducing manual cleaning steps and saving post-processing time.
- Hang-to-drain and angled drainage design: Works with the machine's built-in hanger, letting you hang the plate upside down above the resin vat after printing to drain excess resin back for recovery, making cleanup easier.
- Sandblasted, anodized surface with laser-engraved texture: The surface is treated with sandblasting, anodizing, and laser engraving, improving first-layer adhesion while staying durable and wear-resistant, even with long-term use.
- Enlarged dual-handle design: Equipped with dual handles for a secure, mess-free grip on large prints, improving handling efficiency.
- Compatible with Phrozen Wash Mega S: Place the plate directly into the washer after printing for faster post-processing.
- Quick-release design: The latch structure lets you remove the build plate with one hand after printing, with no tools required.
- 4-point leveling design: The Phrozen build plate uses a 4-point leveling system, making the leveling process simple and quick while improving print success rates.
- Full aluminum alloy structure: High-strength aluminum alloy provides rigidity, durability, and resistance to deformation.
- Official compatible design: Each build plate is made for its matching Phrozen Sonic printer model, ensuring the dimensions and structure fit properly.
Specs
Specs
- Compatible Model: Sonic Mighty Revo 16K MAX
- Material: Aluminum alloy
- Surface Treatment: Sandblasted anodized surface with laser-etched texture.
When Do I Need to Replace My Build Plate?
Build plates are built for long-term use, but replacement may be needed if:
-
The build plate surface is heavily scratched or deformed.
-
Surface adhesion noticeably decreases.
-
The build plate structure is damaged or the locking mechanism fails.
-
The sandblasted anodized surface is worn and affects adhesion consistency.
Replacing the build plate can help restore stable model adhesion.
Why Choose the Official Phrozen Build Plate?
Using the official build plate helps maintain printer stability and print quality:
-
Latch-lock quick-release + dual-handle design for one-handed removal, cleaner handling, and a steadier grip.
-
All-metal build plate design can go directly into the washer, saving cleaning time.
-
Upside-down draining and angled drain design work with the built-in hanger to let excess resin flow back into the vat for easier cleanup.
-
Sandblasted anodized surface with laser-etched texture provides stable adhesion and long-term wear resistance.
-
Compatible with Phrozen Wash Mega S for faster post-processing.
-
High-strength aluminum alloy structure.
Frequently Asked Questions
What does a 3D printer build plate do?
What does a 3D printer build plate do?
The build plate holds the printed model. During printing, the model attaches to the plate layer by layer and rises along the Z-axis as it takes shape.
Why does the build plate need to be leveled?
Why does the build plate need to be leveled?
The build plate needs to stay level so the model can adhere evenly. If it is not leveled correctly, the print may fail or detach from the plate.
How often does the build plate need to be leveled?
How often does the build plate need to be leveled?
Re-leveling is usually needed in the following situations:
- The first time you use the printer
- After replacing the LCD or release film
- After a failed print
What special design features does the Revo 16K MAX build plate have?
What special design features does the Revo 16K MAX build plate have?
The Revo 16K MAX build plate includes severalspecial designfeatures:
- Quick-release clip design with enlarged dual handles: The clip structure allows one-handed quick release, so no screws need to be loosened after printing. The enlarged dual handles provide a secure, mess-free grip on large prints with no risk of slipping.
- Hang-to-drain, angled drainage, and all-metal build plate design: Works with the machine's built-in hanger, letting you hang the plate upside down above the resin vat after printing to drain excess resin back for recovery. The all-metal design also goes directly into the Phrozen Wash Mega S washing machine, saving time during post-processing.
- Sandblasted, anodized surface with laser-engraved texture, improving first-layer adhesion while staying durable and wear-resistant.
Can the build plate go directly into the Phrozen Wash Mega S for cleaning?
Can the build plate go directly into the Phrozen Wash Mega S for cleaning?
Yes. The build plate's all-metal design lets it go directly into thePhrozenWash Mega S washing machine, no manual cleaning needed, doubling post-print efficiency.
Does the build plate surface need special care?
Does the build plate surface need special care?
We recommend cleaning the build plate surface regularly to prevent leftover resin from affecting adhesion. Avoid using metal scrapers or sharp tools, as they may scratch the sandblasted anodized coating.
Sonic Mighty Revo 16K MAX Original Parts
This original parts collection includes heated resin vats, Quick-Release Resin Vats, build plates, LCD screens, release films, and other accessories for daily maintenance, consumable replacement, and workflow upgrades.
- Made for Sonic Mighty Revo 16K MAX with official Phrozen specifications for stable operation.
- High-quality manufacturing and precise dimensions support accuracy and durability during long print runs.
- Suitable for both daily maintenance and performance upgrades, making it a reliable choice for Revo 16K MAX users.
For installation and usage guidance, please refer to the Phrozen Help Center.
