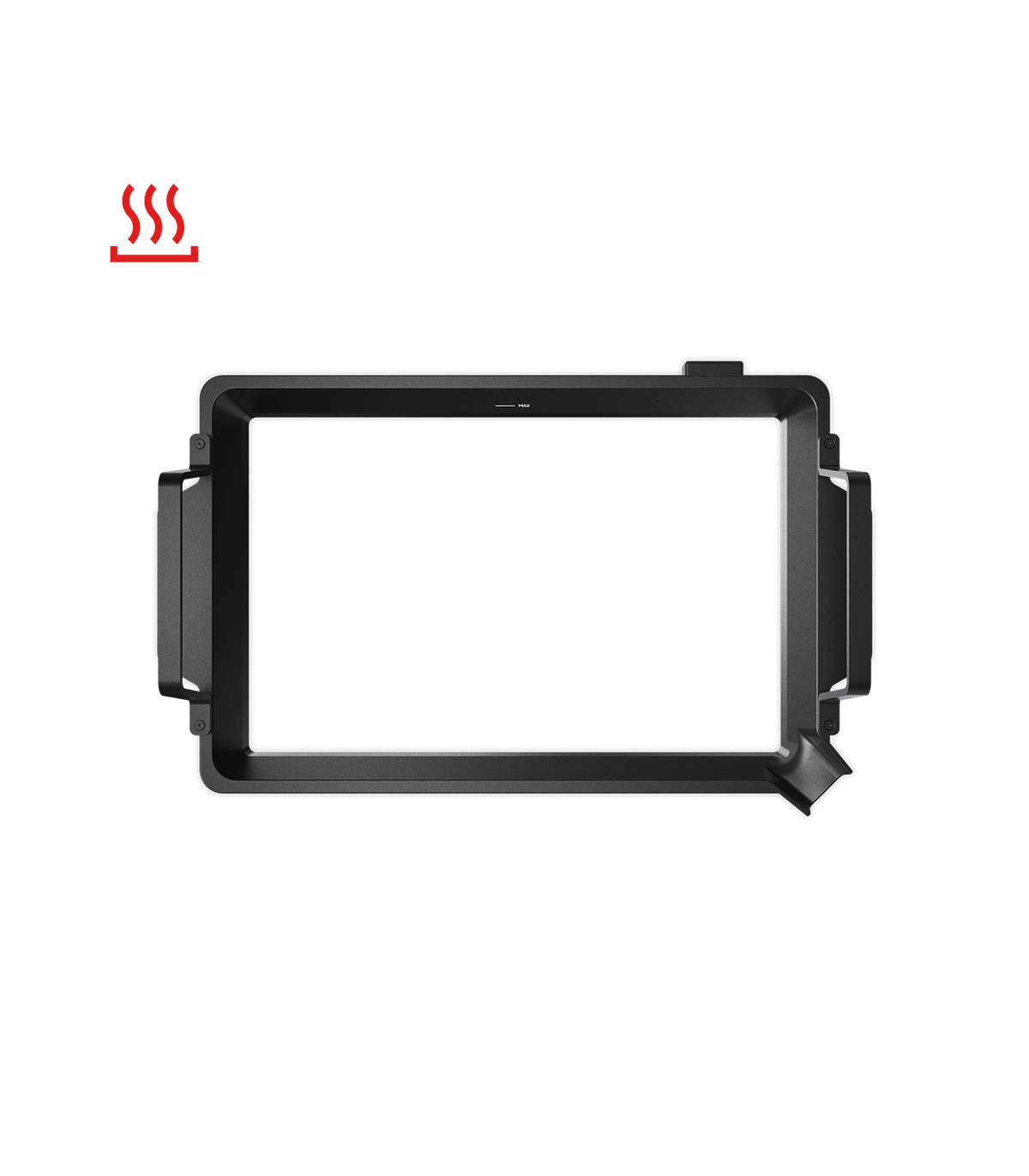

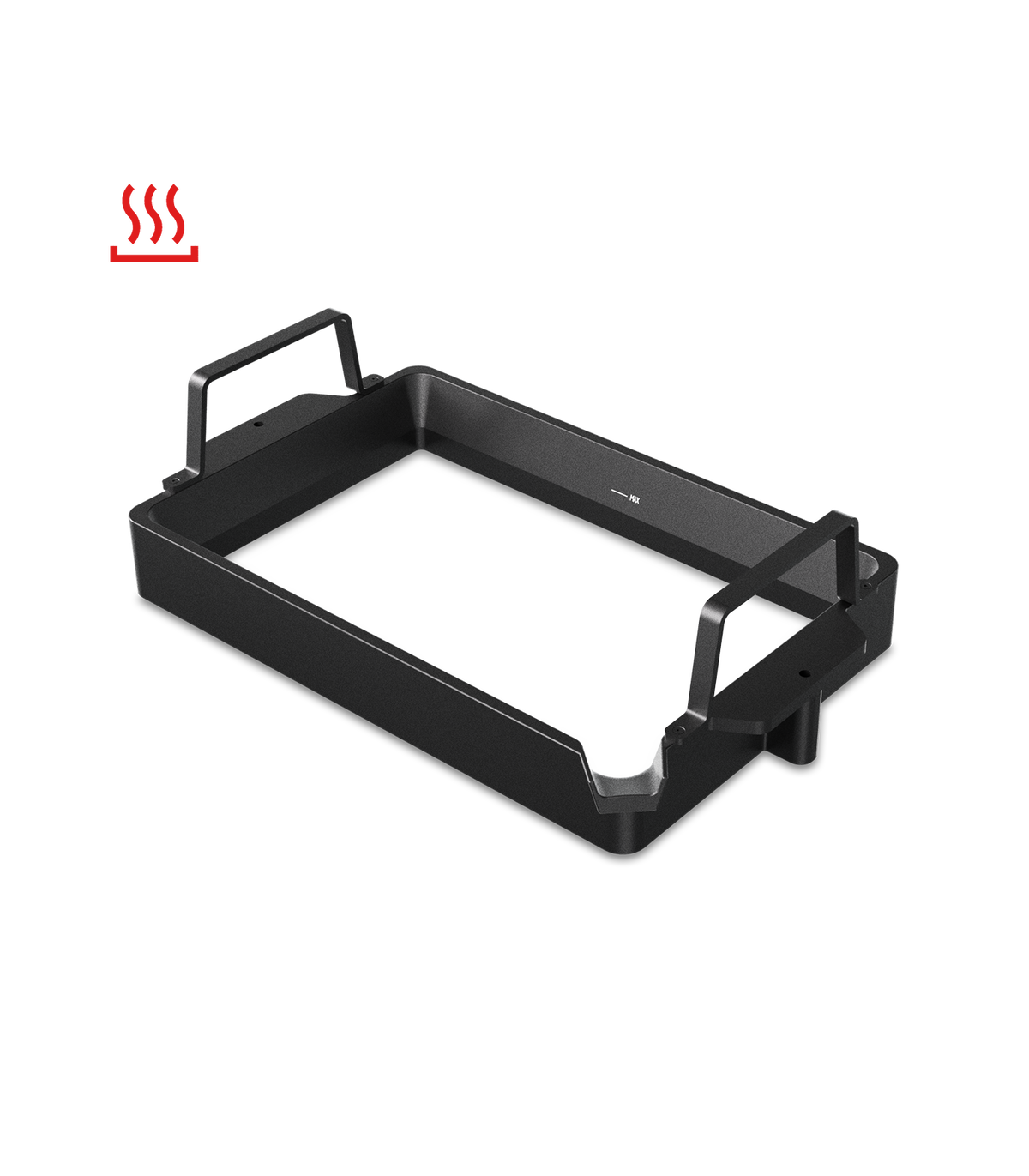

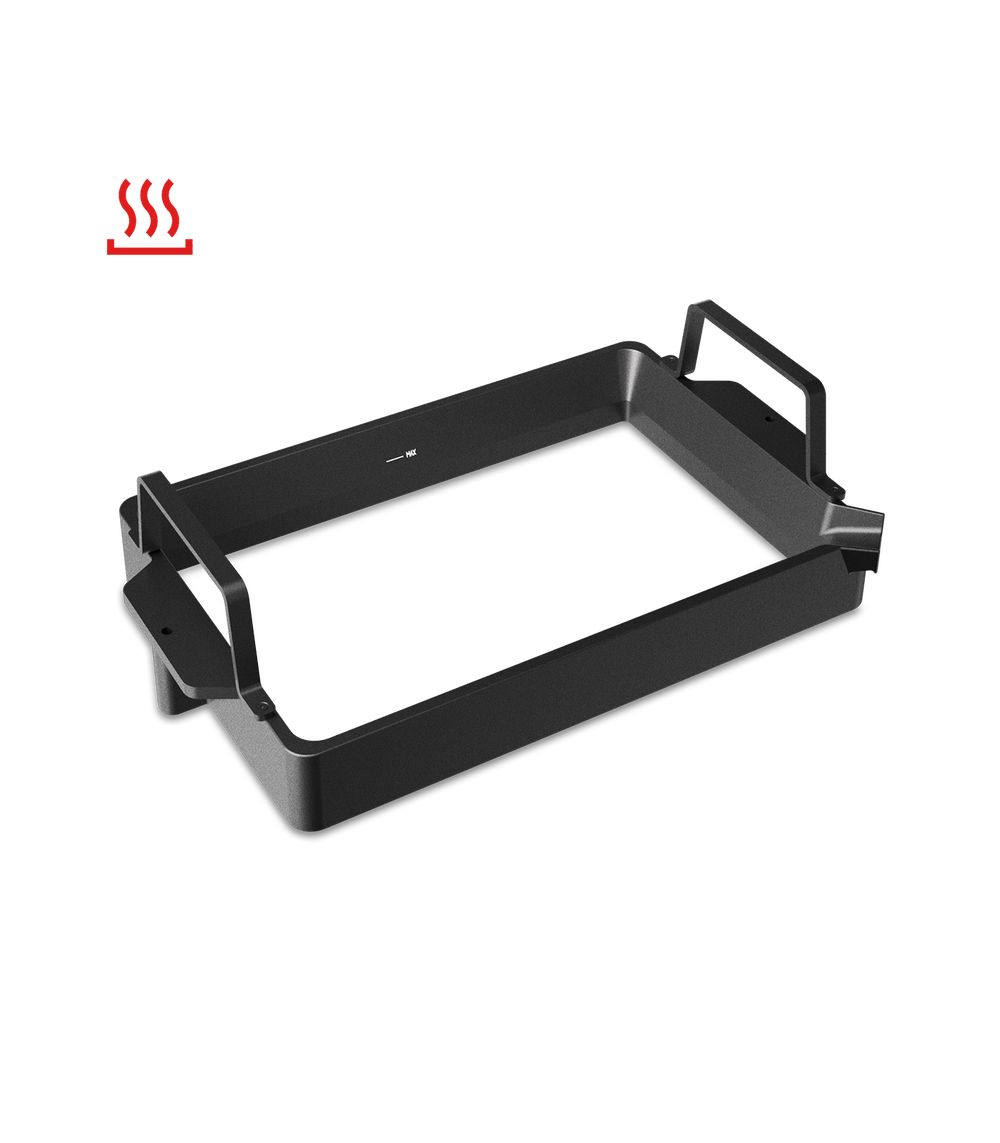

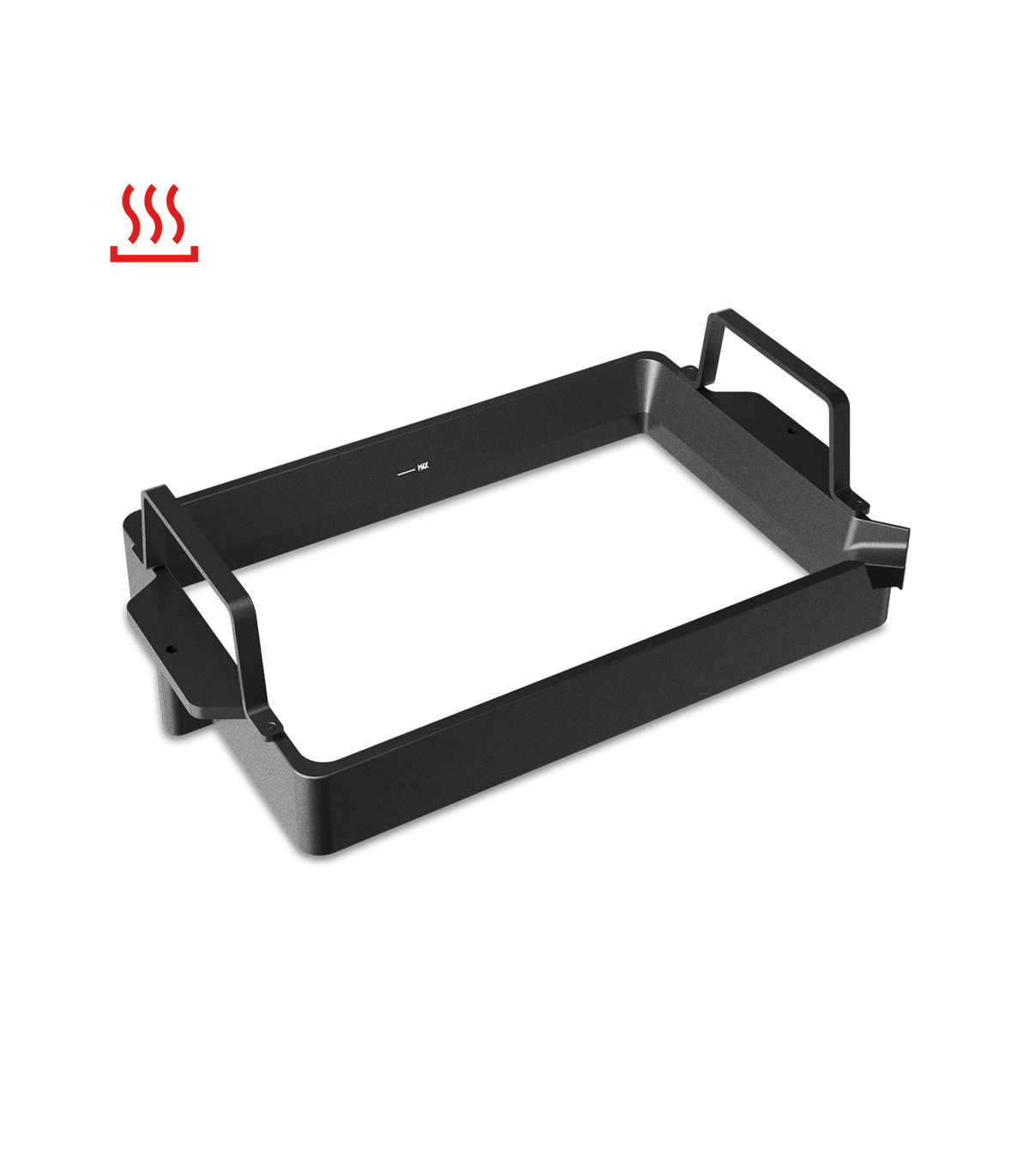

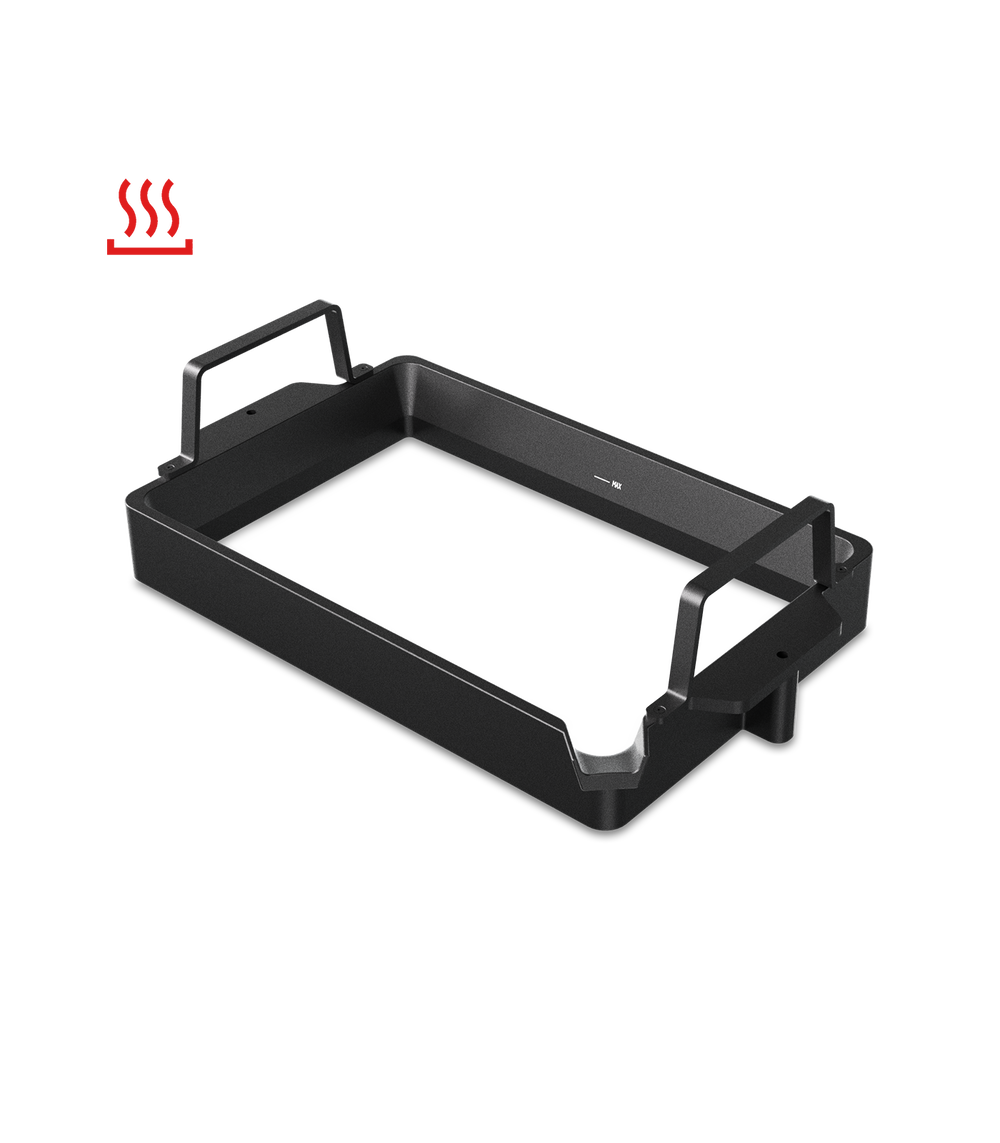

Phrozen Heated Resin Vat for Mighty Revo 16K MAX
$135.00
$198.00
Unit price
/
Unavailable
Shipping calculated at checkout.
ETA: End Of December
- Built for large-scale, high-precision, long-duration prints that work with the Sonic Mighty Revo 16K MAX chamber heater to create a dual-heating temperature control system.
- Helps resin flow more smoothly in cold rooms, even with high-viscosity engineering resins.
- Automatically adjusts heating based on the machine's overall temperature, reducing the flow instability and print risks.
- Large 2L capacity with an internal MAX fill line, so long prints have enough resin without overfilling.
- Official Phrozen part made to match Sonic Mighty Revo 16K MAX specifications.
Couldn't load pickup availability
Shipping & Tariff
- Please expect a standard lead time of approximately 1 week.
- Currently, the Phrozen US Store only ships to the mainland United States. For non-contiguous states and other U.S. territories, please purchase through our Global Store.
- No refunds will be provided if a customer refuses to collect or returns their product(s) due to related costs.
- Customers are responsible for customs clearance in all countries.
- For more information, please refer to our Shipping page.
Shipping Notice: In-stock items are prioritized and arranged to ship first. Out-of-stock items will ship once available.
Return & Warranty
- According to the Consumer Protection Act, you have the option to request a refund within a period of 13 days. However, please note that the refund does not cover the shipping fees and tax/VAT charges. To initiate the refund process, you need to submit a request to the Phrozen Support Center within this 13-day timeframe. It is important to ensure that the product is returned in its original condition, and the entire batch order must be sent back. For more details, please refer to our Refund Policy page.
-
All products purchased from the official website of Phrozen are warranted under different terms. Phrozen offers a one-year warranty for all our products except consumables and components; this includes the LCD screen and the FEP film. LCD screens for the Sonic Mighty 8K, Sonic Mini 8K, Sonic Mega 8K, Sonic Mini 4K, and Sonic 4K are covered under a 3-month warranty. For more details, please refer to our Warranty page.
*Kind reminder: We would suggest pairing our printers with Phrozen's resins to prevent surface paint damage. If a problem occurs, please feel free to contact our support team.
Product Highlights
Product Highlights
Product Overview
The Phrozen Heated Resin Vat is an optional resin vat for the Sonic Mighty Revo 16K MAX. It works with the printer’s built-in chamber heating to create a dual-heating system, making it a good choice for cold-weather printing or high-viscosity engineering resins. If temperature stability is something you care about, this heated resin vat is a great fit for your setup.
What Is a Resin Vat?
A resin vat is a key component of an MSLA 3D printer, which holds the photopolymer resin used for printing. During printing, UV light passes through the release film at the bottom of the vat, such as FEP, PFA, or ACF, curing the resin layer by layer to form the model. A stable, durable vat helps the print process run smoothly, keeps resin flow even, and supports consistent model quality.
What Is a Heated Resin Vat?
A heated resin vat adds a heating module to the original resin vat structure, helping keep the resin at a stable working temperature. It is especially useful for printing in low-temperature environments or with high-viscosity engineering resins.
The official Phrozen aluminum resin vat is CNC-machined and anodized for high strength, durability, and long-term structural stability. It also comes with a pre-installed release film, so you can start printing right after installation.
Key Features
- Smart resin vat heating: Works with the printer’s standard chamber heating to create a dual-heating temperature control system, helping prints stay stable in cold environments and with high-viscosity engineering resins.
- Automatic heating control: When heating is enabled, the vat heats based on the printer’s internal chamber temperature status, helping resin maintain steadier flow in low-temperature conditions.
- Full aluminum CNC body: CNC-machined aluminum gives the vat a strong, durable structure that helps maintain shape and sealing over long-term use.
- Anodized surface: Adds durability and helps reduce wear over time.
- Easy-pour spout: A dedicated pour spout makes resin changes and resin draining easier.
- Pre-installed release film: The vat ships with release film already installed, so no extra setup is needed before first use.
- Official compatible design: Each vat is made for its matching Phrozen Sonic printer model, ensuring the dimensions and mounting structure fit properly.
Specs
Specs
- Compatible Model: Sonic Mighty Revo 16K MAX
- Material: Aluminum alloy
- Capacity: 2L
- Fill Indicator: Internal MAX fill line
- Heating Logic: Chamber and vat heat to the set temperature before printing begins.
Quick-Release:No (for quick-release function, please choose the Quick-Release Resin Vat)
When Do I Need to Replace My Resin Vat?
Resin vats generally have a long service life, but you may need to replace one under the following conditions:
-
The vat shows warping or poor sealing
-
The mounting structure is damaged
-
The vat surface shows significant wear
-
The heating module malfunctions (fails to heat, or shows abnormal temperature readings)
If only the release film is damaged, you typically only need to replace the film itself.
Why Choose the Official Phrozen Heated Resin Vat?
Using the official resin vat helps maintain printer stability and print quality:
- Smart resin vat heating works with chamber heating to create a dual-heating system.
- Stable printing in cold environments and with high-viscosity engineering resins.
- Large 2L capacity helps long overnight prints run without interruption.
- CNC-machined aluminum alloy structure.
- Durable anodized surface.
- Easy-pour design for cleaner resin handling.
- Pre-installed release film.
- Designed specifically for Sonic Mighty Revo 16K MAX.
Use and Care Tips
To extend the life of your resin vat, we recommend the following:
-
Clean the vat after every print.
-
Avoid contact between the release film and sharp tools.
-
Replace the release film immediately if it is damaged.
-
Empty the vat before long-term storage.
-
Keep liquid away from the heating module contacts when cleaning.
-
Wipe with a slightly damp, lint-free cloth, then let the vat dry completely.
-
If the printer has been in a room below 15°C for a long time, preheat the chamber before starting the print.
Frequently Asked Questions
Does the heated resin vat come standard with the printer?
Does the heated resin vat come standard with the printer?
No. Sonic Mighty Revo 16K MAX comes standard with the Quick-Release Resin Vat. The Heated Resin Vat is an optional upgrade sold separately.
Can I switch between the Heated Resin Vat and the Quick-Release Resin Vat?
Can I switch between the Heated Resin Vat and the Quick-Release Resin Vat?
Yes. Both vats can be used with Sonic Mighty Revo 16K MAX. The Heated Resin Vat is better for cold rooms or high-viscosity resins, while the Quick-Release Resin Vat is better when faster film replacement is the priority.
Does the Heated Resin Vat have a quick-release film system?
Does the Heated Resin Vat have a quick-release film system?
No. The Heated Resin Vat uses a traditional release film installation method with a frame and screws. If fast film replacement is your priority, choose the Quick-Release Resin Vat.
What is the heating temperature setting?
What is the heating temperature setting?
The machine heats both the chamber and the resin vat to the set temperature before printing begins.If theoverall chamber temperature drops abnormally during printing, the system will automaticallysendan alert.
Which release film should I use with the Heated Resin Vat?
Which release film should I use with the Heated Resin Vat?
Use Phrozen PFA (nFEP) Film for Mighty Revo 16K MAX Heated Resin Vat. Do not use the Quick-Release Resin Vatversion, since the size and installation method are different.
How is a Heated Resin Vat different from a standard resin vat?
How is a Heated Resin Vat different from a standard resin vat?
A Heated Resin Vat adds a heating module to the standard resin vat structure, helping resin stay at a stable working temperature. It is especially useful in cold environments and when using high-viscosity engineering resins, such as Tough 100E, where stable temperature can significantly improve print success rate and surface quality.
Why is the resin vat made of aluminum alloy?
Why is the resin vat made of aluminum alloy?
Aluminum alloy offers strong durability, helping the vatmaintaina stable structure and resist warping over long-term use. For the Heated Resin Vat, aluminum alloy also helps transfer heat more quickly and evenly to the resin inside the vat.
How often does the resin vat need to be replaced?
How often does the resin vat need to be replaced?
Resin vats aregenerally builtto last a long time. If the structure becomes damaged or warped, we recommend replacing it with a new one.
Which resins are compatible with the resin vat?
Which resins are compatible with the resin vat?
Phrozen resin vats can be used with many types of photopolymer resin. The Heated Resin Vat is especially useful for high-viscosity engineering resins, such as Tough 100E, because a stable temperature helps these resins reach better flow.
Sonic Mighty Revo 16K MAX Original Parts
This original parts collection includes heated resin vats, Quick-Release Resin Vats, build plates, LCD screens, release films, and other accessories for daily maintenance, consumable replacement, and workflow upgrades.
- Made for Sonic Mighty Revo 16K MAX with official Phrozen specifications for stable operation.
- High-quality manufacturing and precise dimensions support accuracy and durability during long print runs.
- Suitable for both daily maintenance and performance upgrades, making it a reliable choice for Revo 16K MAX users.
For installation and usage guidance, please refer to the Phrozen Help Center.
