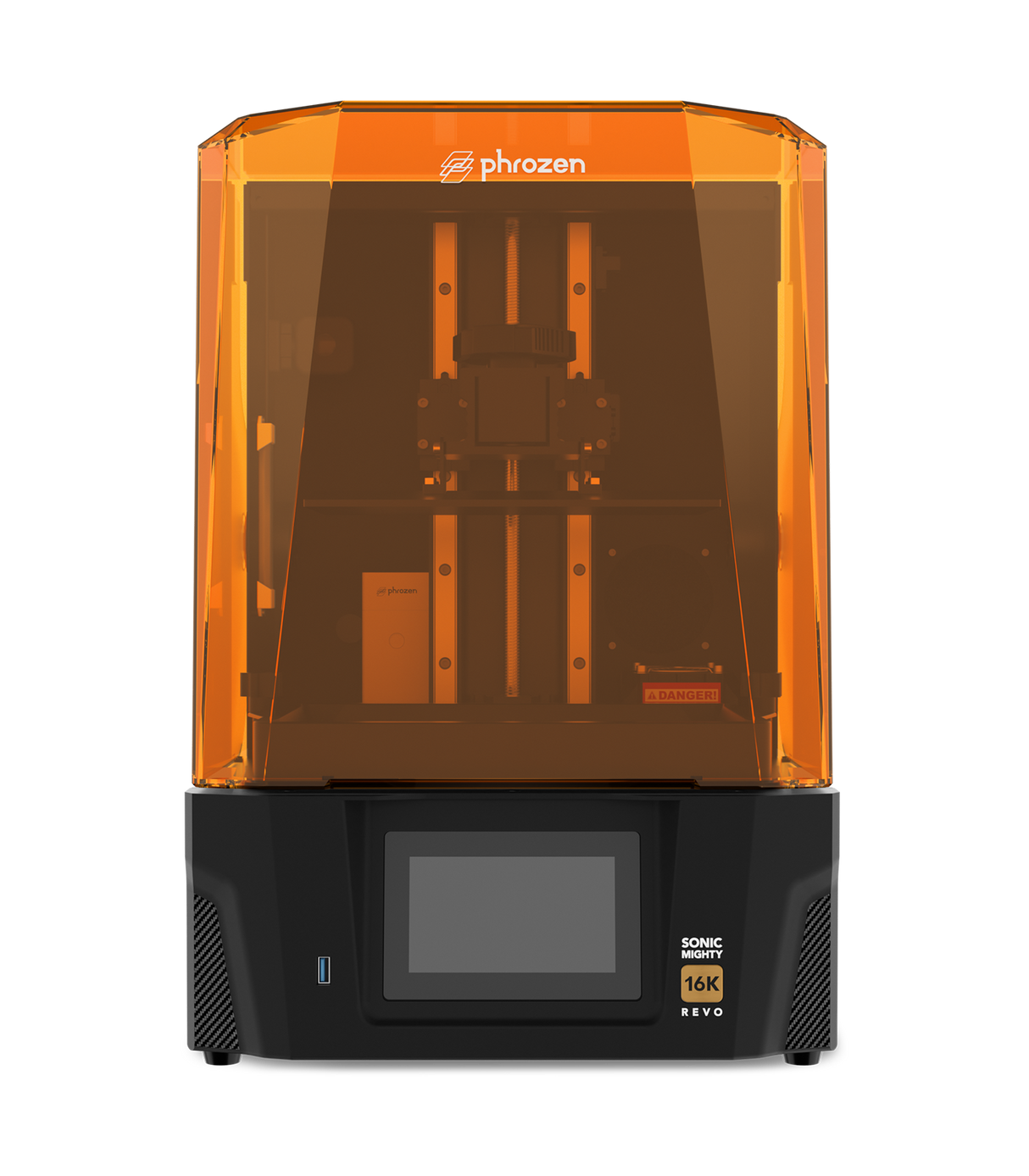

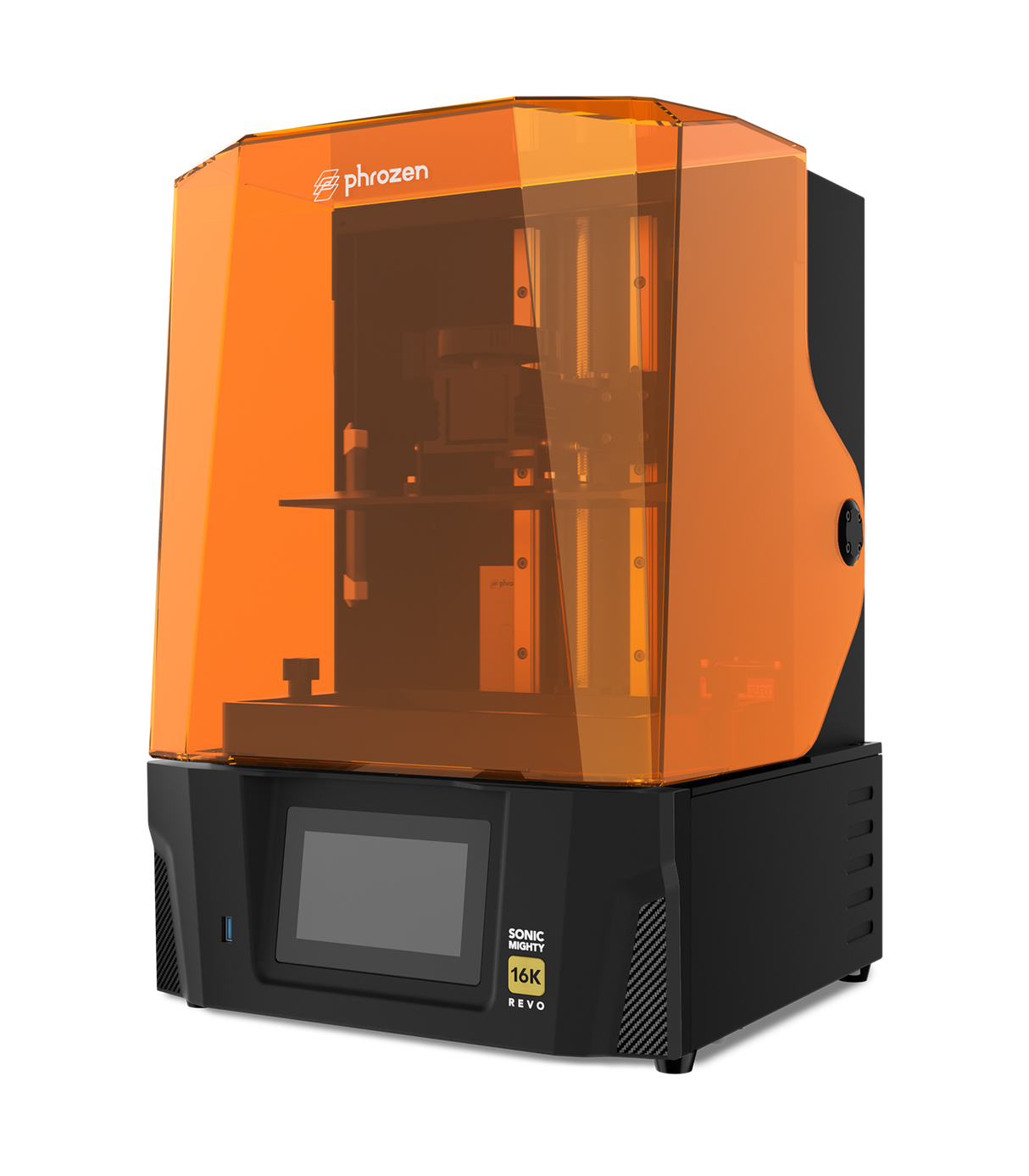

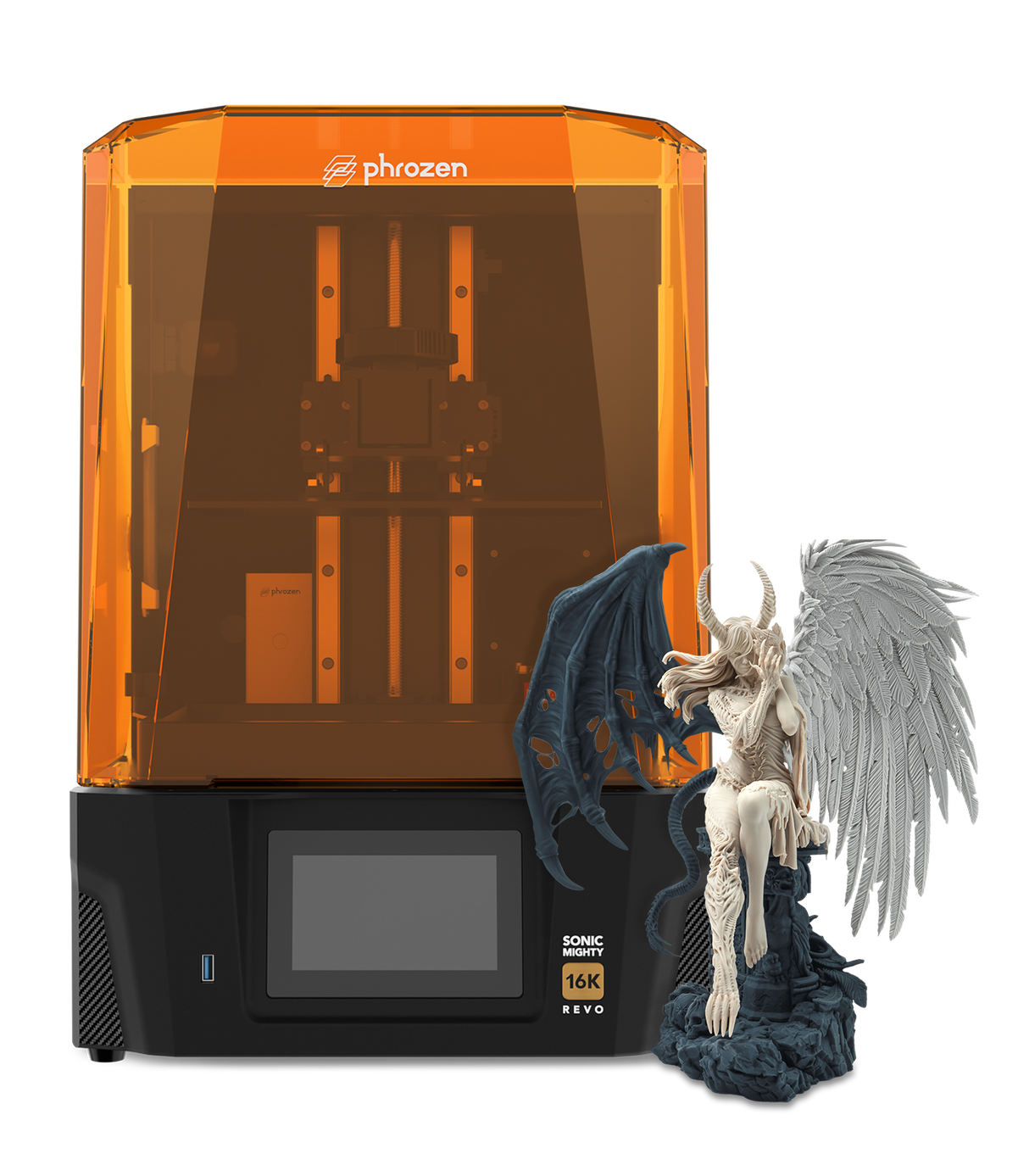

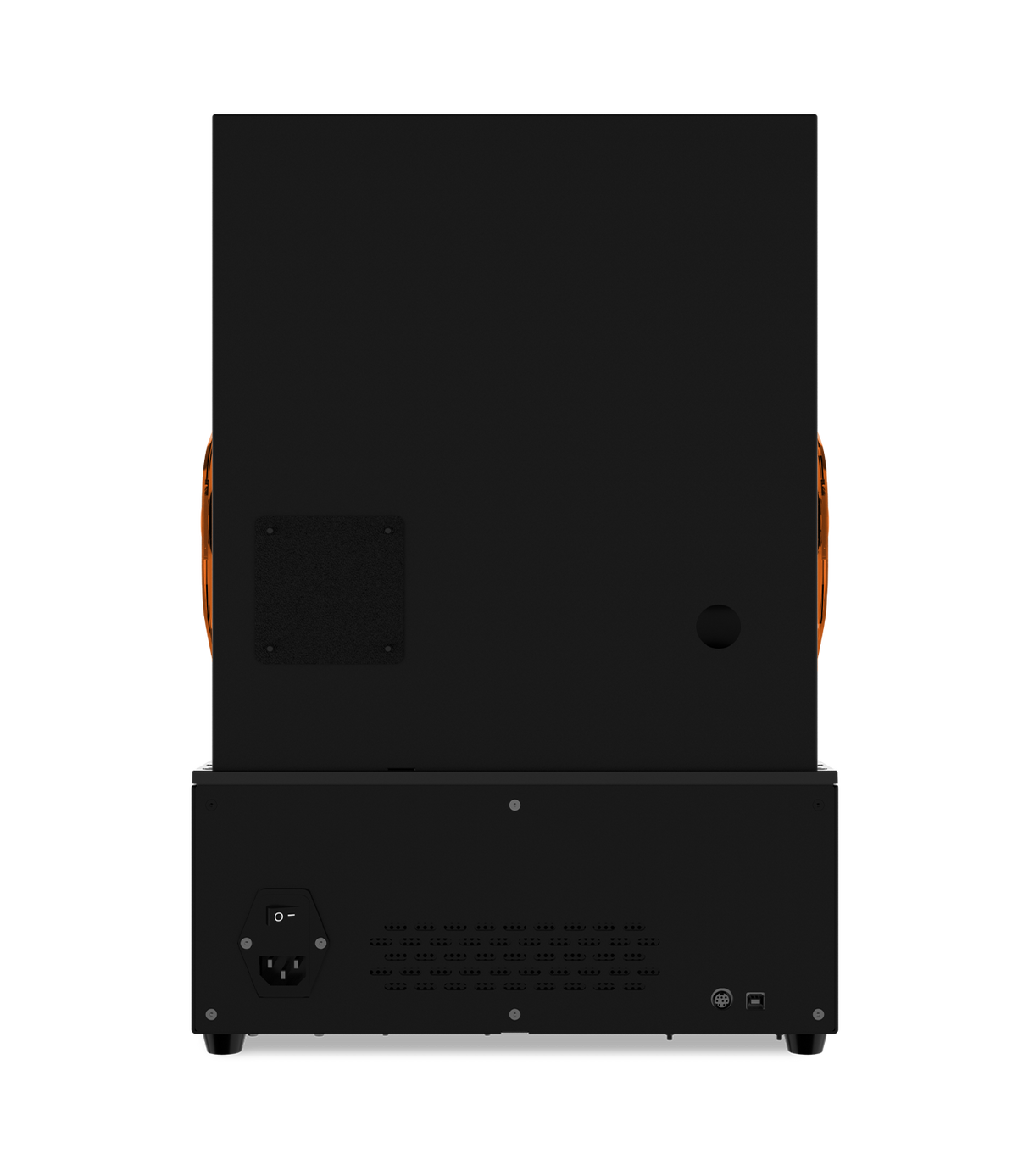

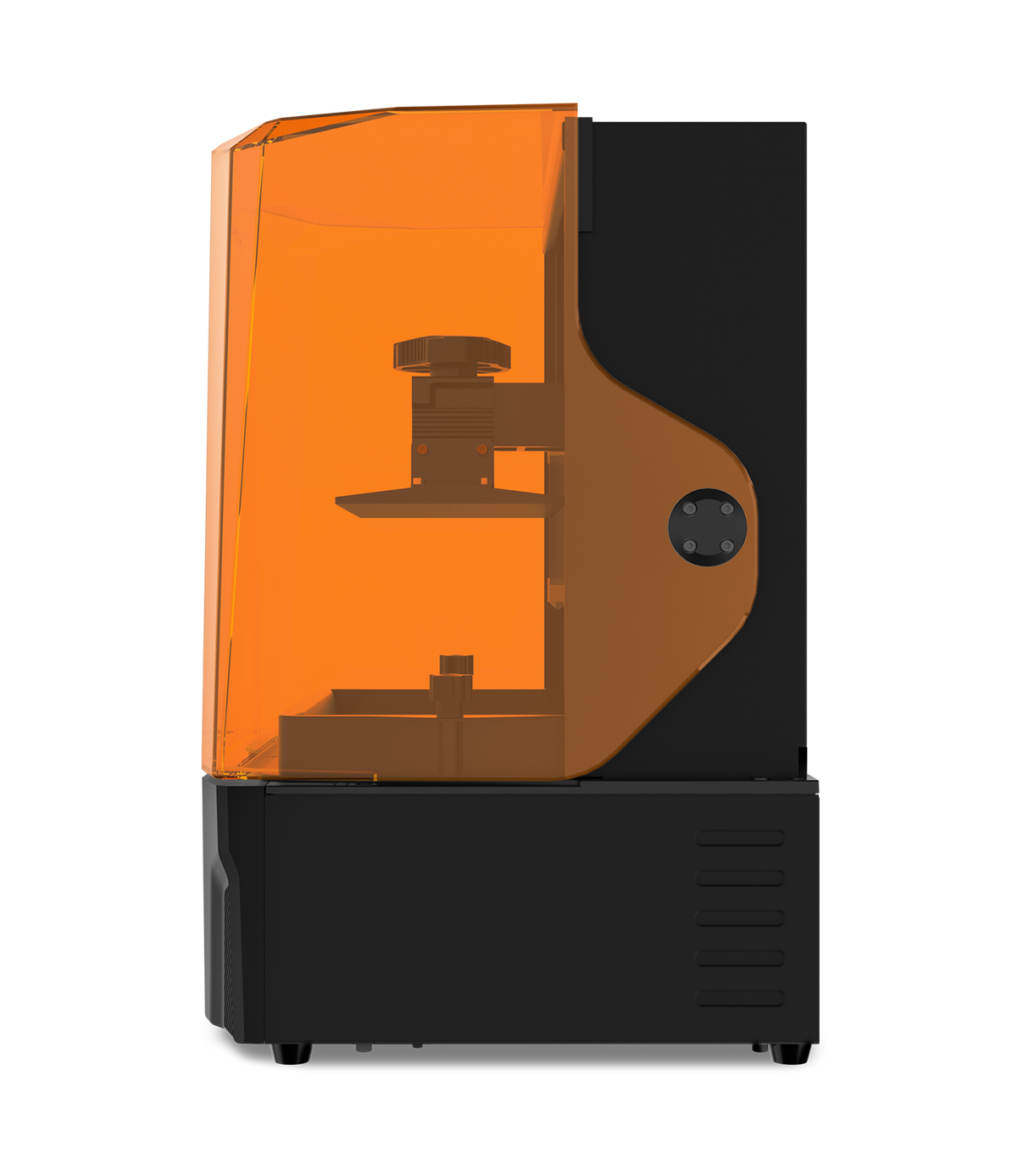

Phrozen Sonic Mighty Revo 16K LCD 3D Printer
Pre-order
New arrival
$699.99
Unit price
/
Unavailable
Shipping calculated at checkout.
Phrozen Sonic Mighty Revo 16K LCD 3D Printer is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Shipping & Tariff
- Please expect a standard lead time of approximately 1 week.
- Currently, the Phrozen US Store only ships to the mainland United States. For non-contiguous states and other U.S. territories, please purchase through our Global Store.
- No refunds will be provided if a customer refuses to collect or returns their product(s) due to related costs.
- Customers are responsible for customs clearance in all countries.
- For more information, please refer to our Shipping page.
Return & Warranty
- According to the Consumer Protection Act, you have the option to request a refund within a period of 13 days. However, please note that the refund does not cover the shipping fees and tax/VAT charges. To initiate the refund process, you need to submit a request to the Phrozen Support Center within this 13-day timeframe. It is important to ensure that the product is returned in its original condition, and the entire batch order must be sent back. For more details, please refer to our Refund Policy page.
-
All products purchased from the official website of Phrozen are warranted under different terms. Phrozen offers a one-year warranty for all our products except consumables and components; this includes the LCD screen and the FEP film. LCD screens for the Sonic Mighty 8K, Sonic Mini 8K, Sonic Mega 8K, Sonic Mini 4K, and Sonic 4K are covered under a 3-month warranty. For more details, please refer to our Warranty page.
*Kind reminder: We would suggest pairing our printers with Phrozen's resins to prevent surface paint damage. If a problem occurs, please feel free to contact our support team.
Specifications
Specifications
-
LCDMono LCD 10.1"
-
Resolution14*19 μm (16K)
-
Light Source405nm / COB + Fresnel Lens
-
Light intensity and light uniformity3900-5900 u≥75%
-
Layer Thickness0.01-0.2 mm
-
Operating Screen5"
-
ConnectivityUSB, Wi-Fi, Ethernet
-
SoftwareChitubox
-
RailDual Rails (Ball Screw)
-
Build Volume224 x 127 x 235 mm
-
Printer Size353 x 345 x 517 mm
-
Weight18 kg
Ultra-Crisp Prints or Real-Time Monitoring?
Revo 16K Handles Both, No Sweat
畫素更密， 細節表現更到位 無論是刻紋或表面紋理都更加清晰。
Next-Gen LCD Durability — More Hours, More Creations
With higher transparency, stronger heat resistance, and improved light uniformity, the upgraded LCD pushes past 2,000+ hours—made to keep up with makers who never stop creating.
Print to Showcase in No Time, 90% Less Polishing
Revo 16K delivers surfaces so smooth that layer lines are nearly invisible—straight off the build plate with studio-ready quality.
Designer: Nerikson/The Face of Evil
Zoom closer and see the difference—layer lines on 16K prints are nearly invisible, even under magnification.
Zoom closer and see the difference—layer lines on 16K prints nearly invisible, even under magnification.
Hyperfine 16K Resin: The Perfect Match for Revo 16K For flawless, ultra-precise results.
Explore Now
Your Reliable Partner — Instant Alerts When It Counts
With a built-in heater and multi-point pressure sensors, Revo 16K works like a trusted assistant—monitoring every print in real time so you can focus on the fun part.
Aerospace-Grade Aluminum — Tough, Stable, and Built to Last!
Revo 16K Z-axis features dual linear rails, a ball screw, and an aerospace-grade aluminum frame. This rock-solid stability gives you the confidence to take on ambitious, long-duration prints without losing precision.
30-Minute Preheat, Perfect Prints Every Time
Revo 16K’s built-in heater warms up in just 30 minutes, holding printer chamber steady at 30°C so your prints stay flawless even with sudden temperature swings.
Circulating heat keeps temperature stable, helping every layer cure cleanly for flawless results.
A short warm-up ensures steady temperature throughout long print jobs
Maintain the printing chamber at 30°C to boost your print success rate.
One Swipe, All Machines in Control
One-Touch Calibration, Zero Hassle
Revo 16K assists leveling with a single press, so whether you’re a 3D printing beginner or expert, you can dive straight into printing.
Detects Trouble, Stops Fast
When debris or errors appear, Revo 16K reacts in real time and stops the print before it harms your LCD or release film.
Failsafe Braking, Always Safe
When printing delicate models, even the smallest error can result in a significant amount of wasted resin and render hours of work useless. Revo 16K detects detachment instantly, pausing the print job to protect your work and valuable production time.
Monitor Multi-Printers in One Place
Track all your Revo 16K at once through the Phrozen GO app—making it easier than ever to manage and grow your own 3D printing farm.
*The sensors will detect objects ≥ 4mm.
**Notifications will be triggered once sensors detect the complete absence of peeling force for 15 continuous layers, after the building plate is no longer submerged in resin.
Go Anywhere,
Monitor Your Prints Anytime
At work, in a client meeting, or relaxing at a café, Phrozen GO keeps your prints at your fingertips. With real-time monitoring, instant alerts, and time-lapse video, you don’t need to stay by your printer—you can print with peace of mind anytime, anywhere.
iOSAndroid
Your Versatile and Thoughtful Partner
Revo 16K is designed with makers in mind. From a space-saving lift-up cover and HD lighting to a built-in air purifier, sealed motor structure, and more—every detail is thoughtfully built, so you spend less time managing and more time creating.
From Creative Prototypes to Small-Batch Production —All Done with Ease
Professional Design & Creation
For makers who want their work to shine, Revo 16K captures every detail so your ideas look exactly the way you imagined.
Trusted Sidekick for Client Work
Got a rush order or a last-minute request? Revo 16K has your back. From prototypes to functional parts, it prints fast, accurate, and consistent—so you can deliver on time and keep your clients happy.
Small-Batch Farm Printing
Running a printing farm? Revo 16K is a 24/7 workhorse to helps you hit deadlines and and keep orders flowing smoothly.
Monitor Multi-Printers in One Place
Track all your Revo 16K at once through the Phrozen GO app—making it easier than ever to manage and grow your own 3D printing farm.
